Slitting Machine

Slitting Machine

Description

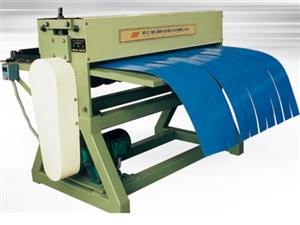

Our HF slitting machine is the auxiliary equipment used for slitting materials. It is simple in structure and easy to adjust.

Advantages of Slitter Rewinder

1. Lanteky was founded in 1968 and is an experienced slitter machine manufacturer and supplier.

2. In addition to HF slitting machine, we also offer other auxiliary equipment for the forming machine, like uncoiled, stacker, etc.

3. Due to their good quality and reliability, our slitter rewinders have received ISO9000 and CE certification, and are well received in over 60 countries, such as the USA, Germany, Canada, Russia, Mexico, Australia, etc.

Technical Specification of Slitter Machine

No. Item Unit Parameter Remark
1 Suitable material of Slitter Rewinder Type Color plate, aluminum plate , galvanized plate
Plate width mm ≤1250
Yield strength Mpa ≤400
Plate thickness mm 0.3-1.0
2 Cutter Material of Slitter Machine Cr12, with heat treatment
3 Min. slitting width mm 75
4 Driving mode Chain drive
5 Total power kW About 1.5
6 Outline dimensions (LXWXH) m 0.8 × 1.8 × 1.7
