Purlin Roll Forming Machine

Purlin Roll Forming Machine

Description

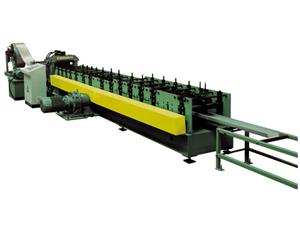

Our purlin roll forming machine is produced by using advanced cold bending, cold stamping, and automatic control technologies. The type of purlins you desire can be formed using this machine through the process of leveling, cold forming, punching and cutting off. We can offer purlin machines of different specifications, models and configurations to meet your specific requirements.

Main Components of Purlin Making Machine

Jinggong purlin roll forming machine is mainly composed of decoiler, leveling system, punching equipment, cutting equipment, cold forming system, finished product supporter, hydraulic system and auto control system.

Advantages

1. Featuring a wide application range, simple operation, high level of automation and low labor intensity, this machine is very popular among our global customers.

2. A wide range of construction materials machinery is available in our company including the sandwich panel machine, steel tile forming machine, and guardrail forming machine etc.

3. Our purlin making machines have been awarded the ISO9000 and CE certificates. Thanks to their high quality, our forming machines are exported to many countries, such as America, Australia, Bulgaria, Argentina, Egypt, Syria, India, and more.

Technical Specifications for Purlin Roll Forming Machine

No Item Unit Parameter Remark
1 Applicable material Type

Ordinary cold, hot rolled plate, galvanized plate

Plate strength MPa ≤350
Plate thickness mm 1.5 to 3.0

Coil inside material

mm 500, 600
Coil weight T 5
2 Production spec mm 100 to 300
3 Working speed m/min 12 to 15
4 Roller Material of Purlin Roll Forming Machine GCr15 or D2, with quenching treatment According to customers' requirement
5 Driving mode Chain drive
6 Console mode

Touch screen +button

7 Total power kW About 21
8 Electric control system of purlin making machine Industrial computer PLC frequency control
9 Outline dimensions (LXWXH) m 30 × 2.5 × 1.7
