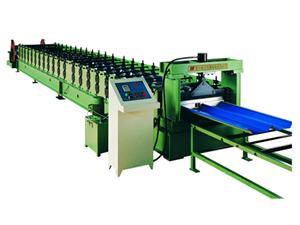

Roll Forming Machine

Roll Forming Machine

Description

This type of roll forming machine line includes various kinds of roof panel forming machines, wall panel forming machines, and lining plate forming machines etc.

Application

This roll forming equipment has received three patents of utility model and is widely used in steel construction enclosure. We can provide various profile shapes and configurations to satisfy your specific requirements.

Main Components

Lanteky roll forming machine comprises of a feeding machine, sheet guiding system, forming system, cutting equipment, product supporter, hydraulic system, and electric control system.

Advantages

1. Lanteky has over 40 years of experience in the manufacture of roll forming equipments.

2. As a professional HV series roll forming machine manufacturer and supplier, we provide a wide range of construction material machinery, such as sandwich panel machine, steel deck forming machine, and downspout forming machine, etc.

3. Due to their high quality and reliability, our roll forming equipments have been ISO9000 and CE certified and is exported to the USA, Germany, Canada, Russia, Mexico, Australia, among others.

Technical Specifications Roll Forming Machine

No. Item Unit Parameter Remark
1

Suitable materials

of Roll Forming Equipment

Type Color plate, aluminum plate, galvanized plate Depending on customer' requirement
Thickness mm 0.4 to 0.8 or 0.8 to 1.2
Yield strength Mpa ≤400 As per customers' material characteristic
Width mm ≤1500 According to different profile shape
Coil weight T 5 or 8 Optional
2 Working speed m/min ≤15
3 Roller Material of Roll Forming Machine Hard chromium plated 45 steel
4 Roller driving mode External chain drive
5 Electric control system Industrial computer PLC frequency control
6 Console mode Touch screen + button
7 Total power kW 6.2 As per technical requirement
8 Outline dimensions(LXWXH) m 20 × 1.6 × 1.8
