Uncoiler Machine

Uncoiler Machine

Description

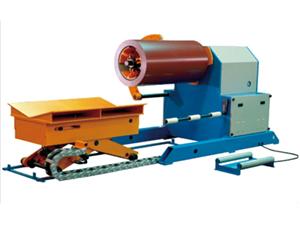

Our uncoiler machine is suitable for the uncoiling and conveying of thin metal sheets. JK series uncoiler primarily consists of the main machine, arm hold down device, tension device, ultrasonic control device, electric control system and independent hydraulic system.

Advantages

1. Our uncoiler machine is innovative in design, and has received two patents of utility model. Automatic material loading and hydraulic tensioning are available.

2. Our JK series uncoiler equipments have earned ISO9000 and CE certificates, and are sought after by customers in the USA, India, Pakistan, Bangladesh, Turkey, the Philippines, Singapore, and more. We look forward to serving you.

3. Jinggon is an uncoiler manufacturer and supplier with over 40 years of experience. We specialize in the production of construction material machinery such as sandwich panel machine, steel tile forming machine, guardrail forming machine, etc.

Technical Specifications for Uncoiler Machine

NO. Item Unit Parameter Remark
1 Uncoiling motor power kW 2.2
2 Hydraulic station power kW 3
3 Uncoiling speed m/min Less than 50
4 Suitable coil inside diameter mm φ508/φ610
5 Suitable coil width mm 1000 to 1250
6 Suitable coil outside diameter mm Less than φ1300 In case of any contradictory, performance parameter is put in the first place.
7 Rated load capacity of Uncoiler Equipment t Less than 6
8

Outline dimensions(LXWXH)

mm 2600×1400×1700
