Data Cabinets Industry
-
Features
- Our parallel cabinet complies with GB 18663.1, GB 4208, IEC 60529 and IEC61578-1.
- The frame is welded by high-quality profiles with outstanding tensile and torsional properties.

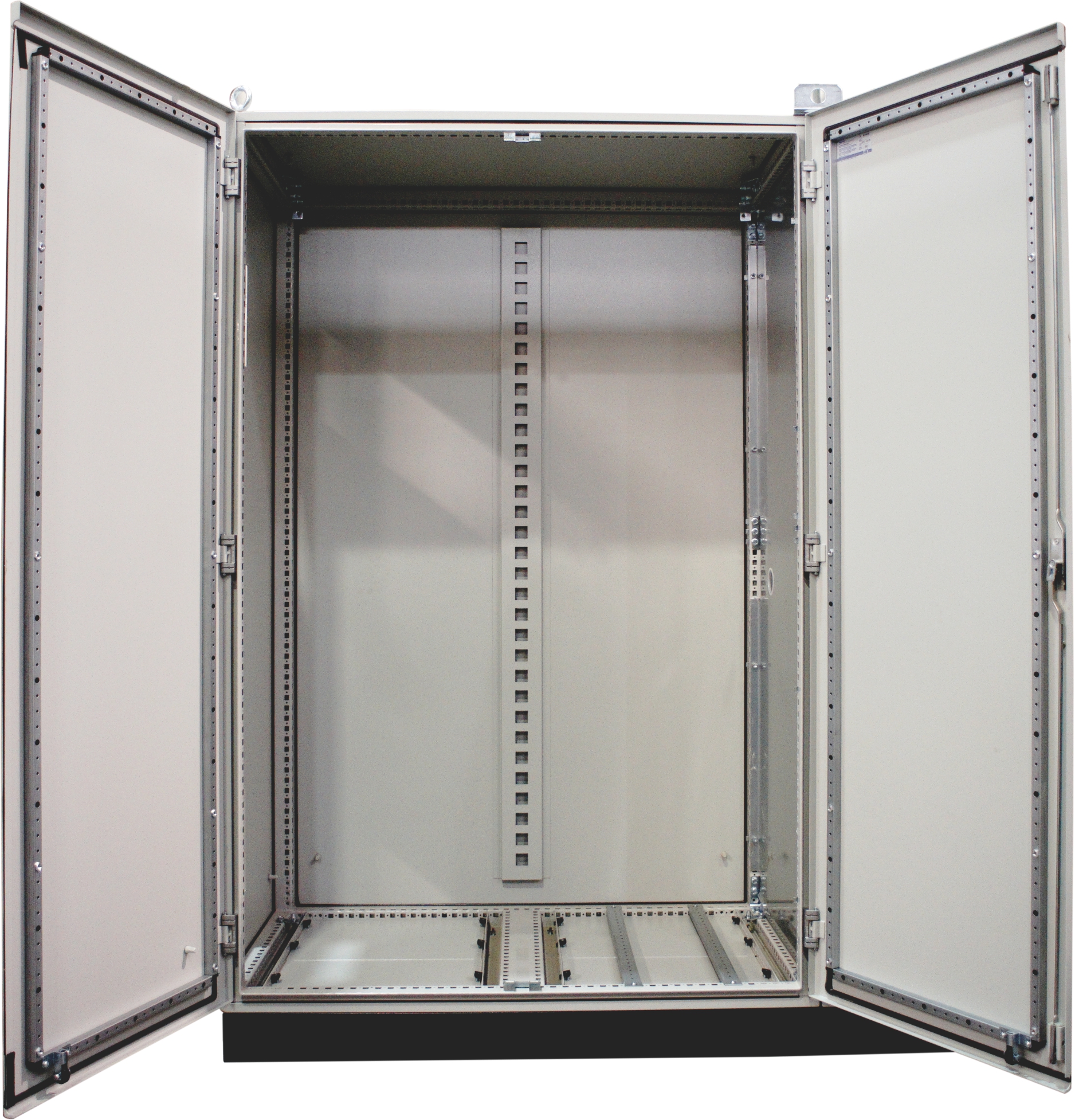

- Galvanized mounting plate can slide through the slider to predetermined location for ease of installation.
- Reserved alignment hole helps to facilitate alignment of top, bottom and side plates.
- The door panel is designed with cassette hinge for smooth opening and closing. Maximum opening angle: 130°.
- A wide range of locking options are available.
- Surface of the parallel cabinet is treated with electrostatic spraying to endow it with excellent anti-corrosion performance.

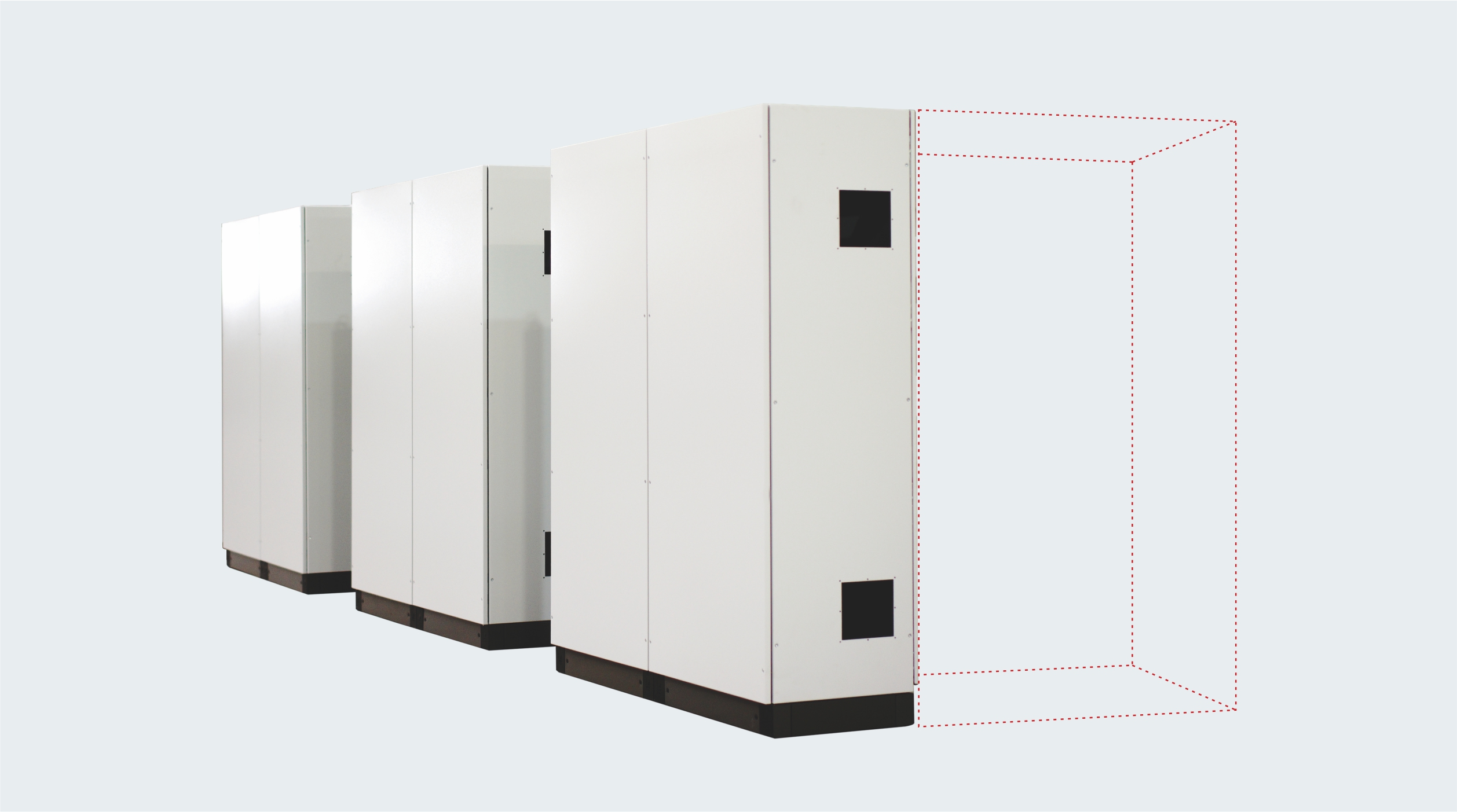

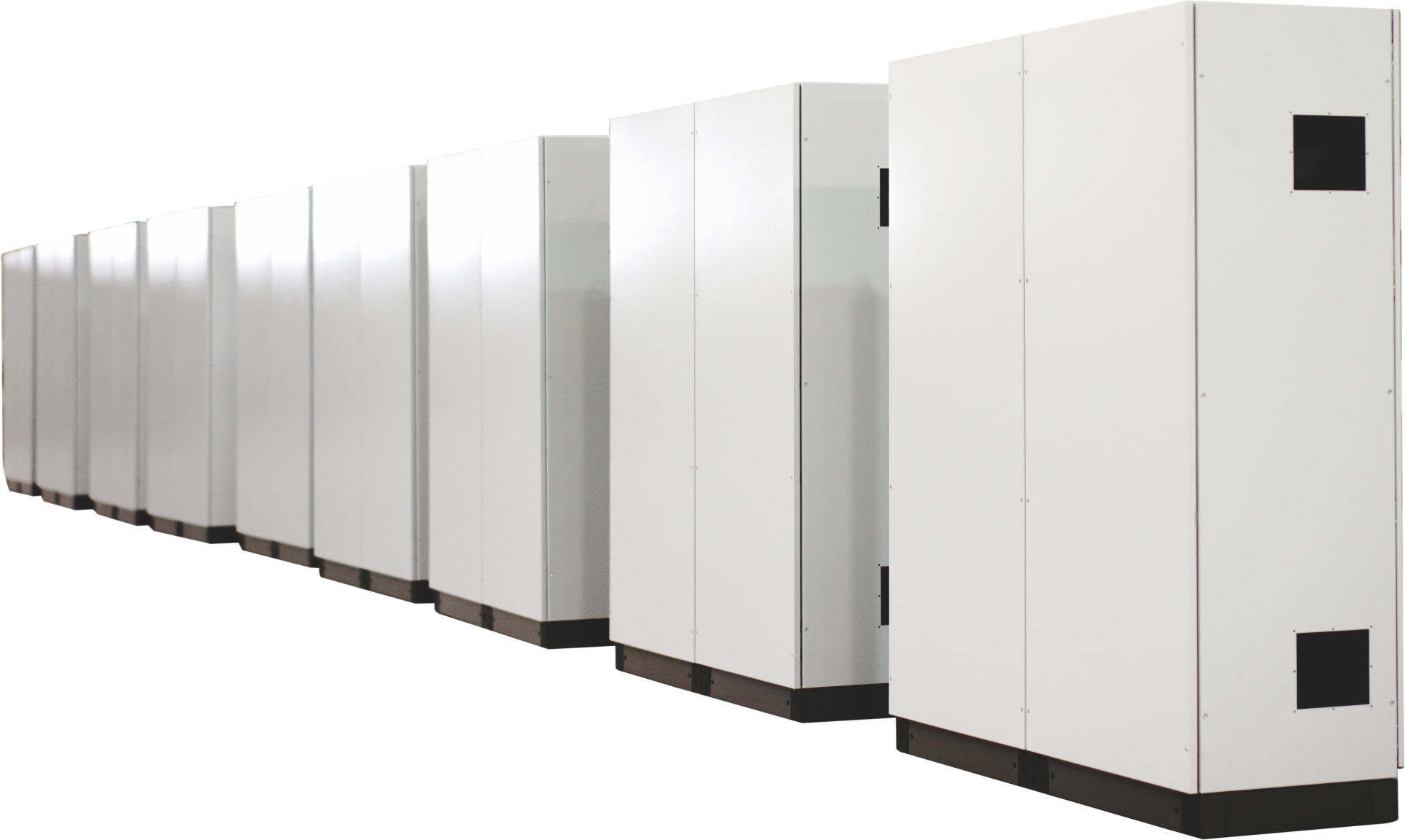

- Multiple cabinets can be combined to use to meet various needs of different industries.
- Technical Specifications
- Frame:1.5mm high-quality cold-rolled steel SPCC
- Door panel, backboard: 2.0mm high-quality cold-rolled steel SPCC
- Top cover, side panel, baseboard:1.5mm high-quality cold-rolled steel SPCC
- Mounting plate: optional 2.5mm and 3.0mm galvanized plate
- Clapboard:2.0mm galvanized plate
- Protection level: IP55 (GB 4208)
- Surface treatment: electrostatic spraying
- Default color number: RAL7035, can be customized
