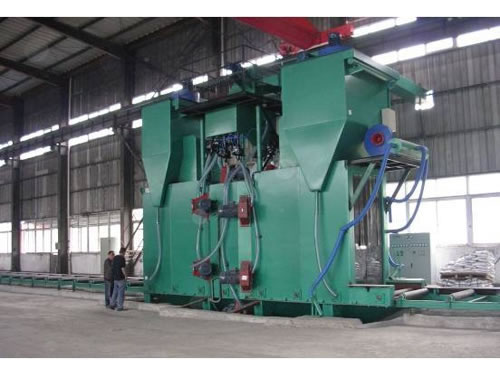

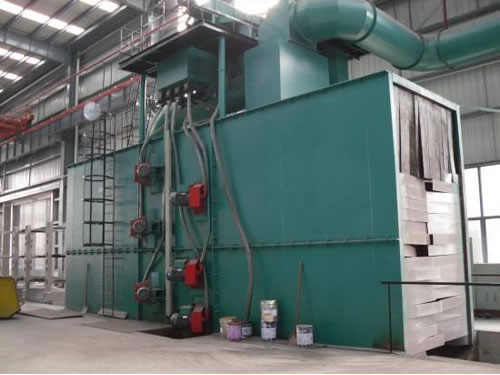

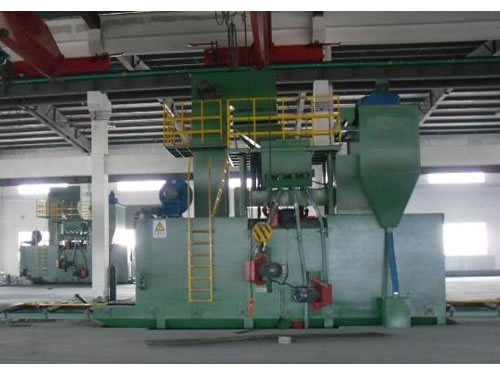

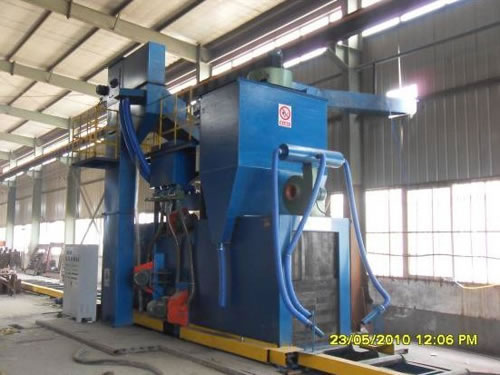

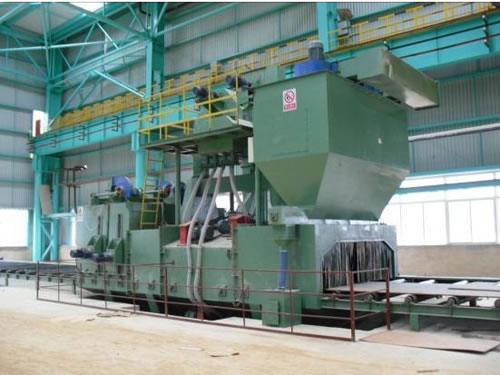

HPG H-Beam Shot Blasting Machine

HPG H-Beam Shot Blasting Machine

Introduction

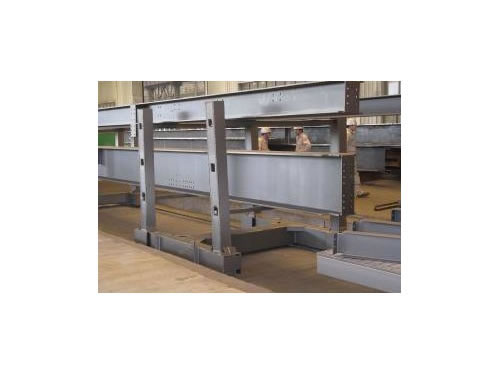

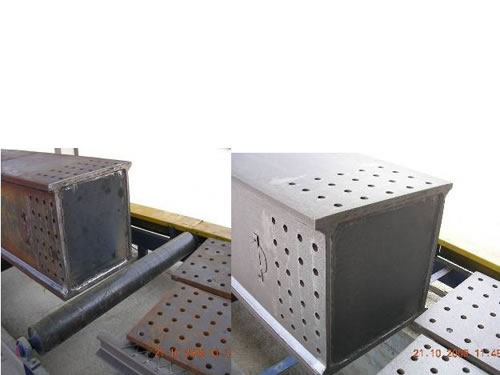

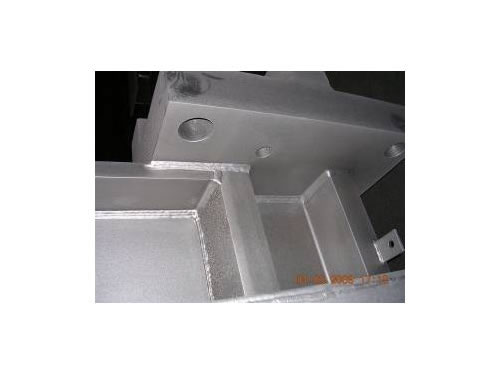

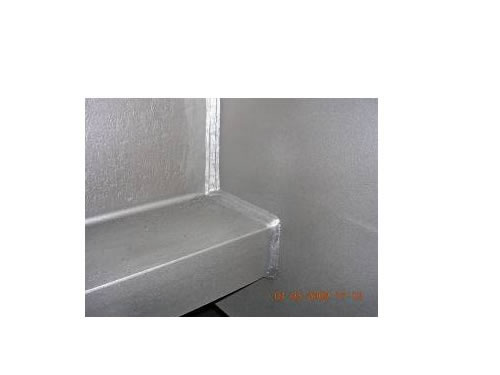

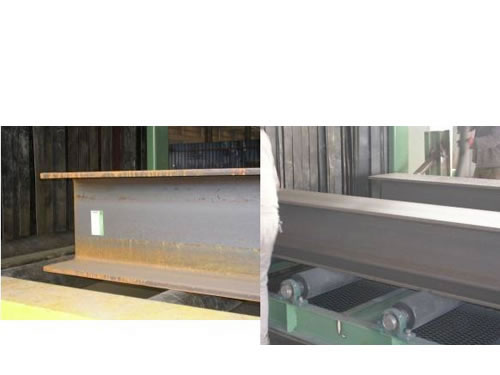

HPG H-beam shot blasting machine, also known as H-beam shot blast cleaning machine, is a kind of shot blasting and cleaning equipment. It can be divided into light H-beam model and heavy H-beam model. Light H-beam shot blasting equipment is equipped with high efficiency rotor blast device which can blast dense and high speed steel balls to shoot the workpieces at all directions. HPG H-beam shot blasting machine (shot blast cleaning machine) can clear rusting, welding slag, oxide scale and other objects on the steel surface quickly. It can clean the surface of H-beams, steel pipes and profile steels, make them to obtain a clean and bright surface with a certain roughness and improve the adhesion of painting. Besides, this shot blast cleaning machine also improves the steel material’s anti-fatigue and anti-corruption ability. The heavy H-beam shot blasting machine is specially designed for large scale welded steel workpieces, H-beams or steel plates. The working principle is similar to light H-beam shot blasting equipment.

Components

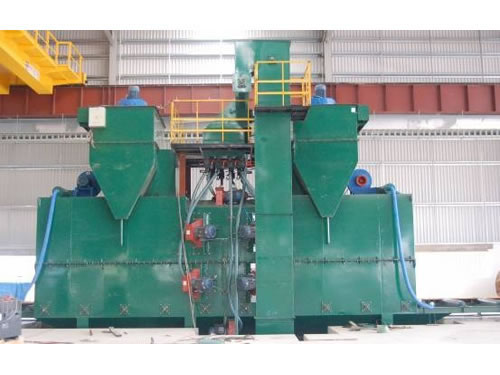

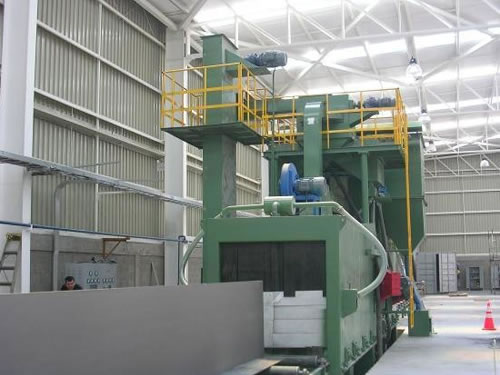

The HPG H-beam shot blast cleaning machine consists of rotor blasting clean room, roller conveyor, rotor material recycling system, dusting system and electrical controller.

Technical Specifications of HPG H-Beam Shot Blasting Machine

Model Parameters HPG126 HPG1810 HPG2012 HPG2512 HPG2515 HPG3020 HPC3020 HPC4025
Effective Height mm 1200 1800 2000 2500 2500 3000 3500 4000
Effective Width mm 600 1000 1200 1200 1500 2000 2500 2500
Entrance Size of Clean Room mm 1230 × 800 1830 × 1200 2030 × 1400 2530 × 1400 2530 × 1700 3030 × 2200 3530 × 2700 4030 × 2700
Workpiece Length mm 3000-15000 3000-15000 3000-15000 3000-18000 3000-18000 3000-18000 3000-18000 3000-18000
Workpiece Thickness mm 5-60 5-60 5-60 5-80 5-100 5-120 5-120 6-120
Workpiece Dimension 1200 × 600 1800 × 1000 2000 × 1200 2500 × 1200 2500 × 1500 3000 × 2000 3500 × 2500 4000 × 2500
Conveyor Speed (Stepless Adjusted) m/min 0.5-6 0.5-6 0.5-5.5 0.5-5.5 0.4-4 0.5-5.5 0.5-5.5 0.5-5.5
Shot Blasting Volume kg/min 6 × 220 8 × 220 8 × 220 12 × 220 12 × 220 14 × 220 12 × 250 16 × 250
First Loading Volume kg 3000 5000 5000 6500 7000 8000 7000 9000
Ventilation Quantity

m3/h

 7500 11700 15000 22000 25000 33000 33000 45000
Depth under Ground mm 2030 2030 2260 2260 2260 2930 1885 2116
Machine Dimension mm 26180 × 3700 × 7800 30360 × 3700 × 8400 30740 × 4600 × 8900 37820 × 4600 × 9500 40820 × 5000 × 9600 40978 × 5500 × 11090 42000 × 5500 × 11441 43500 × 6000 × 12380
Total Power kw 108.4 130.4 140.9 201 208.5 253 204.5 307.5

Zhejiang Jinggong Science & Technology Co., Ltd is a specialized supplier of HPG H-beam shot blasting machines in China. In addition to this shot blast cleaning machine, we also offer cold roll forming machinery, sandwich panel line, steel coil slitting line, cut to length line, metal working machinery, metal coil sheet, etc. We have a professional technical team of first-class rich experience and well-trained technicians. The products developed and designed by us meet the international standard. We are very delighted to provide OEM production of H-beam shot blasting machines. Our shot blast cleaning machines have been used and widely praised by clients from more than 30 countries and areas, such as Russian, Brazil, India, South Africa, Germany, USA, Mexico, Saudi Arabia, and so on.
