Sandwich Panel Roll Forming Machine

Sandwich Panel Roll Forming Machine

Introduction

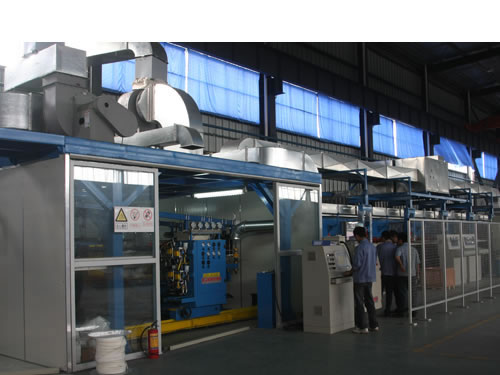

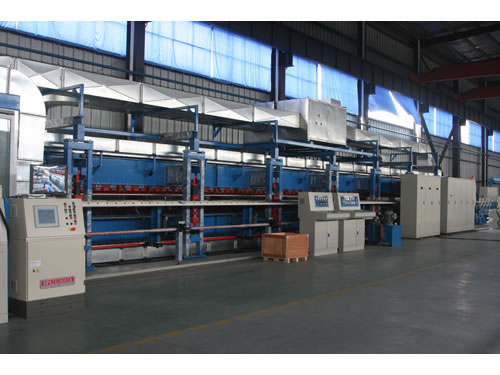

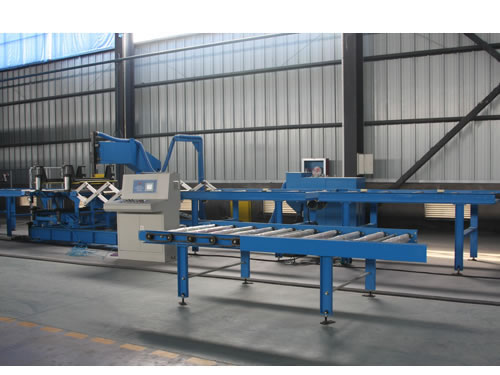

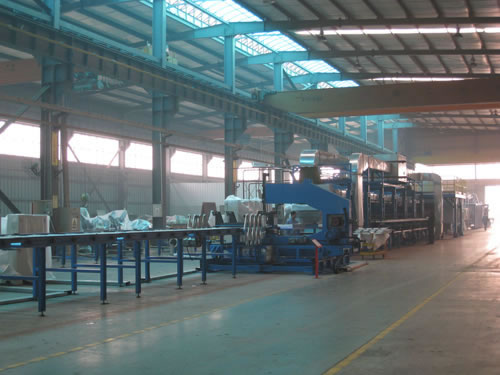

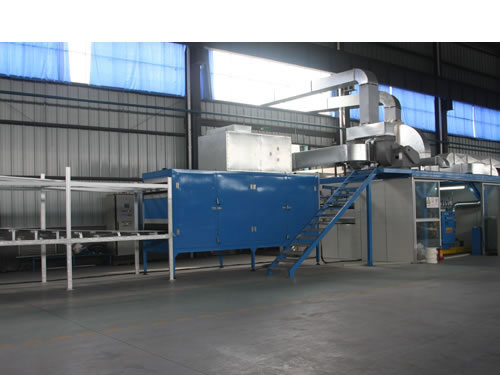

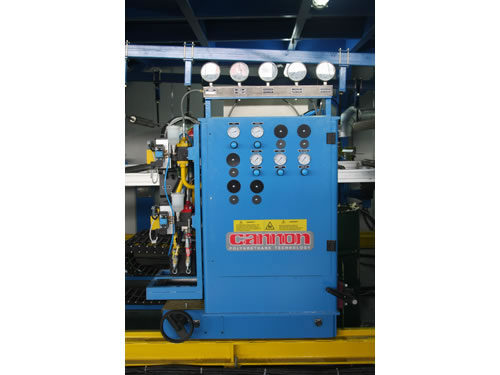

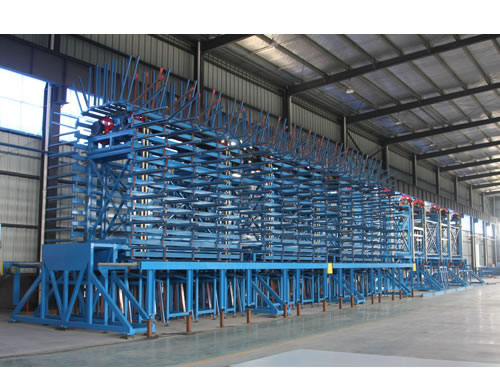

PU sandwich panel is the most popular material in steel structure building, such as office building, warehouse, etc. JF100 PU sandwich panel roll forming machine integrates mechanical, chemical, electric, hydraulic, pneumatic and temperature control technologies. This sandwich panel production line was developed in 2004 and won a number of technology patents in 2005. Zhejiang Jinggong Science & Technology Co., Ltd is ranked as a famous brand by China building material industry. The PU sandwich panel made from the sandwich panel roll forming machine is produced with foaming at working site. There’s a special device which can inject the foaming material between the upper and lower metal sheet, then will be sent into double crawler belt. The chemosynthesis and solidification are both finished inside the double crawler belt. The cutting is finished according to the length which is set before running the machine. This sandwich panel production line (sandwich panel roll forming machine) adopts non-stop cutting and the cutter will be moved along with the panel.

Working Flow

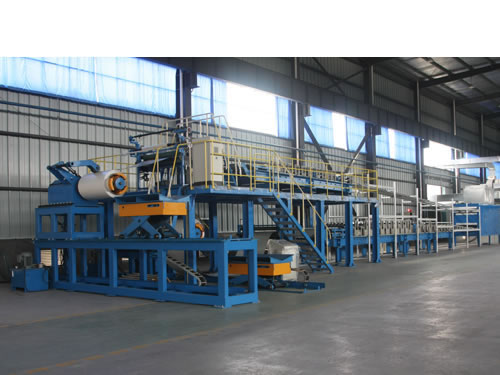

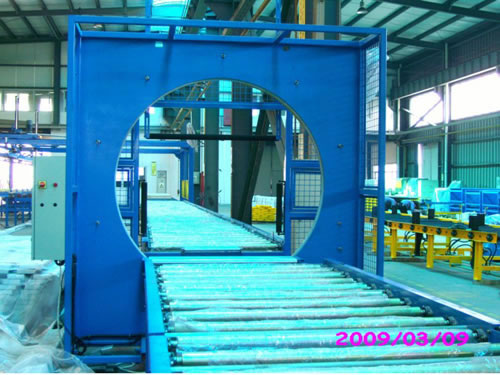

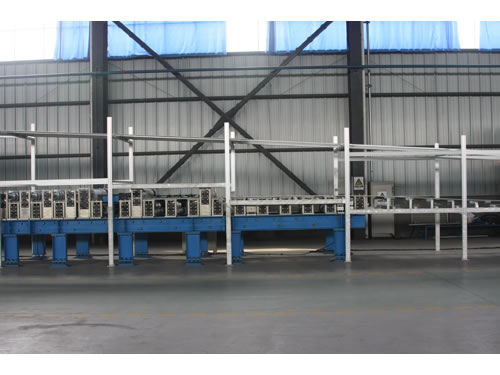

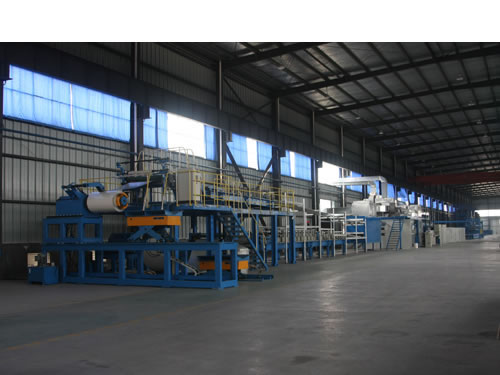

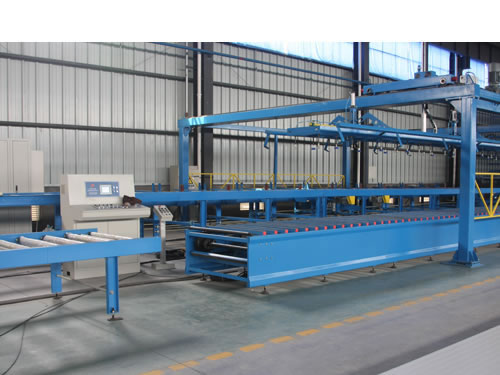

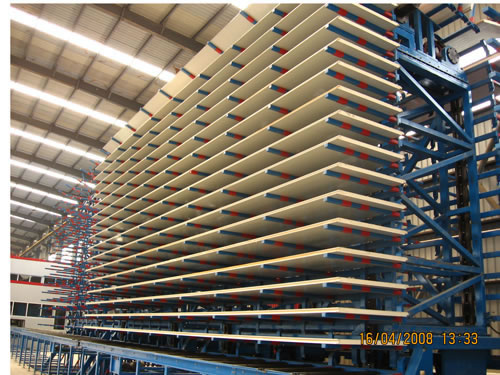

The working process consists of uncoiling, film covering, cutting, roll forming, pre-heating, foaming, solidification, panel cutting, stacking, transferring and packing.

Parameters of Sandwich Panel Roll Forming Machine

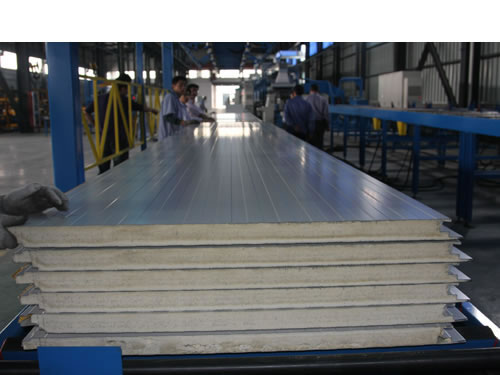

Sandwich Panel Specifications
Min. Cutting Length  3 m
Max. Stacking Length   15 m
Panel Width  1000 mm (according to profile requirements)
Panel Thickness
Thickness of Flat Panel 40, 50, 60, 70, 80, 90, 100, 150 mm
Thickness of Corrugated Sandwich Panel 50, 60, 70, 80, 90, 100, 150 mm
(exclude corrugated sandwich panel)
Steel SheetSpecifications
Thickness 0.4 mm to 0.7 mm (material must be level, no corrugation and distortion)
Yield Strength of Material  ≤ 235 MPa
Max. Width of Material 1250 mm
Max. Coil Weight 5 T
Inner Diameter of Coil Φ508, Φ610 mm
Foaming Material 141B foaming agent
PU Forming Density   40 to 45 kg/m3
Specifications of Sandwich Panel Production Line
Working Speed 3 to 7 m/min (adjustable)
Total Length about 120 m
Working Height  1200 mm (height of panel coming out)
Pressure for Foaming   150 to 200 bar
Effective Length of Double Belt Conveyor 21 m
Control Mode imported PLC system (Siemens or Mitsubishi)
Total Power    about 300 Kw
Power Required  380V / 3phase / 50Hz
Control Voltage 24V / 110V / 220V
Air Pressure    0.7 Mpa (for buyer to prepare)

Zhejiang Jinggong Science & Technology Co., Ltd is specialized in providing sandwich panel roll forming machines in China. In addition to this sandwich panel production line, our company also offers high frequency welded pipe mill, sandwich panel line, steel coil slitting line, cut to length line, metal working machinery, shot blasting machine, metal coil sheet, etc. Our company has a professional technical team, some of who have more than 15 years’ working experience. Our sandwich panel roll forming machines have been exported to Russian, Brazil, India, South Africa, Germany, USA, Mexico, Saudi Arabia, and so forth. We are very delighted to provide OEM production of sandwich panel production lines.
