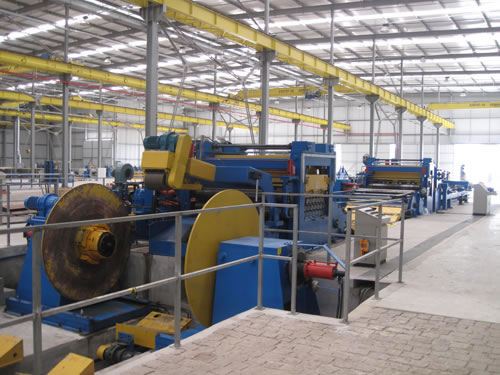

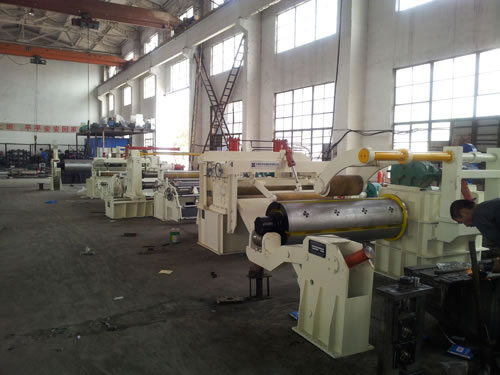

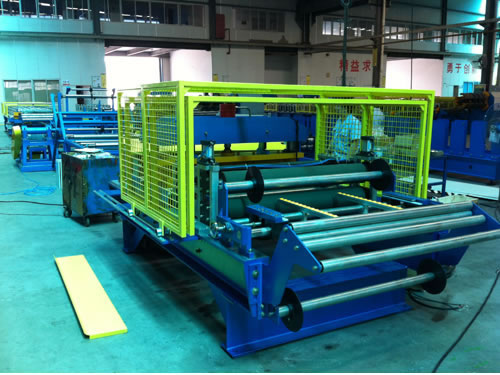

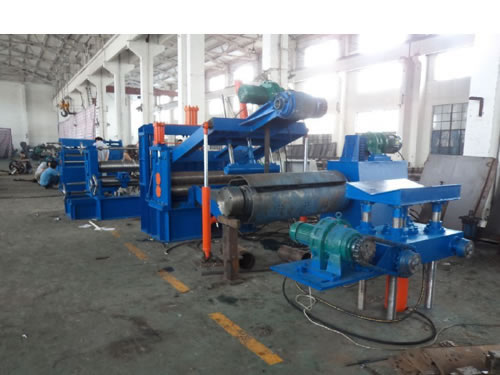

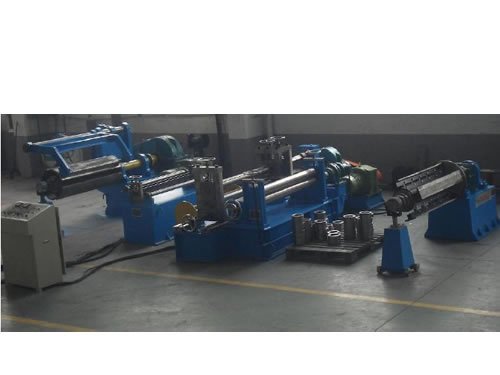

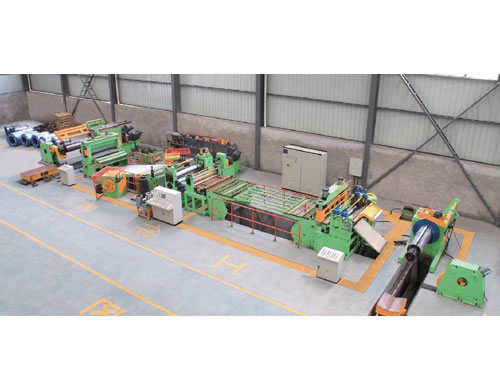

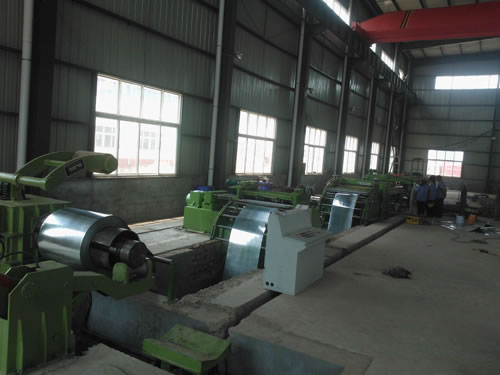

Simple Slitting Line

Simple Slitting Line

Introduction
Rontech simple slitting line is specially developed for low capacity but economical investment. It is evolved from ordinary slitting equipment keeping their functions but simplifying the structure to lower the cost. This line is also known as simple slitting machine or simple slitting production line. It is specially used for small slitting demand. Customers often use this simple slitting line to slit coils for own use rather than for external processing service.

Components of Simple Slitting Machine
Simple slitting line consists of hydraulic coil car, hydraulic decoiler, hydraulic pinch roller and leveling device, pre-cutting machine, slitting machine, scrap winder, tensioning station, hydraulic unload car, hydraulic system and electrical controller.

Parameters of Simple Slitting Line (Simple Slitting Machine)

Material of Processible Coil Sheet various steel plates with strength less than 450 Mpa
Thickness of Coil Sheet up to 3 mm
Width of Coiled Plate 1500 mm
Precision of Slitting Width Tolerance ± 0.02 mm
Slitting Speed 0 to 40 m/min
Loading Capacity of Decoiler 10 T
Coil Inside Diameter 508 mm
Coil Outside Diameter 1200 mm
Diameter of Slitting Knife Pivot 150 mm; material 40Cr
Material of Slitting Blade 9CrSi
Hardness of Blade HRC58° to 60°
Inside Diameter of Recoiler 508 mm

Rontech Imp & Exp Co., Ltd is a subsidiary company of Zhejiang Jinggong Science & Technology Co., Ltd. We are specialized in providing simple slitting machines for customers all over the world. In addition to this simple slitting line or simple slitting production line, our company also offers cold roll forming machinery, high frequency welded pipe mill, sandwich panel line, steel coil slitting line, cut to length line, metal working machinery, shot blasting machine, metal coil sheet, etc. With advanced technological equipment, tremendous technical strength and reliable product quality, our simple slitting line or simple slitting machine have been exported to Russian, Brazil, India, South Africa, Germany, USA, Mexico, Saudi Arabia, and so forth.
