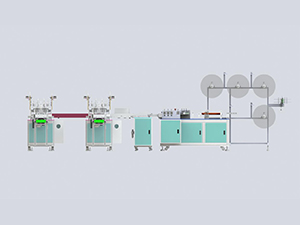

Fully Automatic Medical Mask Machine

Fully Automatic Medical Mask Machine


Jinggong people are always adhering to their belief, fighting the epidemic, and cheering for China.

This equipment realizes the automatic production of flat earloop masks, including the production processes of feeding, folding and pressing, nose bridge tendon feeding, mask forming, earloop welding, finished product cutting and etc.

The output masks are comfortable to wear without pressure, and can be used in different scenarios like factory production, hospital medical treatment, building construction, daily life and etc.

Equipment Parameters

Dimension 6500mm(L) X3600mm(W) X2000mm(H)
Color International standard warm grey 1C
Weight ≤5000kg, ground weight capacity ≤500kg/m2
Working power equipment 220VAC±5%; 50HZ;rated power 12KW
Working air pressure Compressed air pressure 0.5-0.8MPa; compressed air flux 300L/min
Production efficiency 100-110PPM(based on 20 hours each day, daily capacity about 120,000-140,000 pieces)
Qualification ratio 99%(excluding unqualified incoming materials, improper operation by employees)
Equip failure ratio ≤2%(equipment failure itself)
Operating environment Temperature 10一35℃; humidity: 5-35%HR No flammable, corrosive gas, no dust (cleanliness no less than 100,000 grade)
