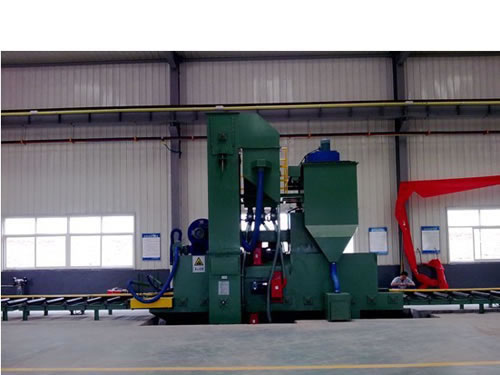

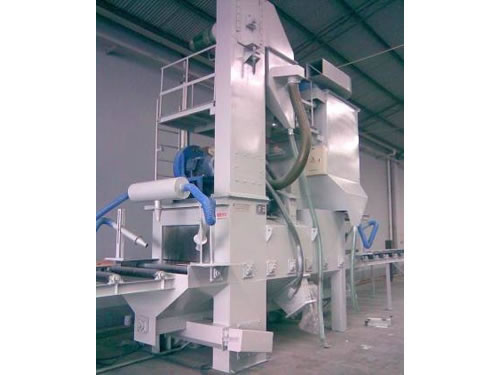

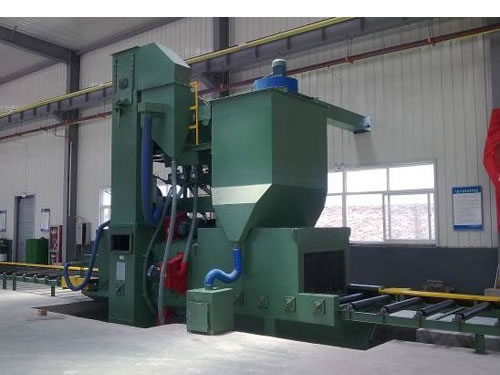

JPG Steel Plate Shot Blasting Machine

JPG Steel Plate Shot Blasting Machine

Description

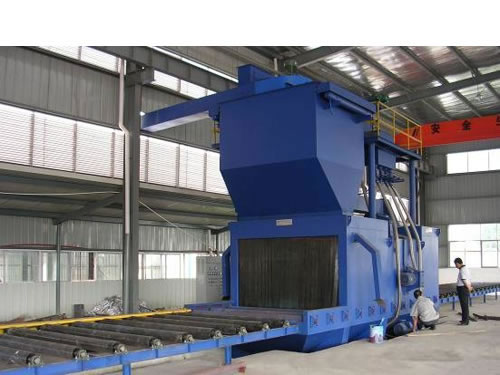

JPG series steel plate shot blasting machine (shot blasting equipment) is used for steel plate pre-treatment and steel structural parts processing. It is characterized by high working efficiency, good treating quality, good adaptability and low cost. This machine is designed with a top-mounted cartridge dust collector and pellet sand separator device, which enables the machine perform more stably and reliably. JPG series steel plate shot blasting machine or shot blasting equipment is particularly suitable for medium and small size machinery manufacturing enterprises. It is also known as section steel shot blasting machine.

Components
JPG series steel plate shot blasting equipment composes of shot blasting system, roller bed, shots circulatory system, dust removing system and electronic control system.

Parameters of JPG Steel Plate Shot Blasting Machine


Parameters

Unit

JPG126

JPG228

JPG258

JPG258

JPG308

JPG358

Cleaning Type



Blowing

Manual

Manual

Automatic

Automatic

Automatic

Effective Clean Width

mm

1200

2200

2500

2500

3000

3500

Blasting Room Entrance Size

mm

1350 × 650

2350 × 850

2650 × 850

2650 × 850

3200 × 850

3700 × 850

Workpiece Length

mm

1500-12000

2400-15000

2400-15000

2400-15000

1900-20000

1900-20000

Conveyor Speed
(Stepless Adjusting)

m/min

0.4-5.5

0.5-5.2

0.5-5.2

0.5-5.2

0.4-4.5

0.4-4.5

Suitable Steel Plate Thickness

mm

5-50

5-60

5-60

5-60

5-120

5-160

Blasting Volume

kg/min

4 × 180

8 × 180

8 × 250

8 × 250

9 × 280

10 × 280

First Loading Volume for Steel Shot

kg

3000

5000

6000

6000

7000

7500

Roll Brush Adjusting Height

mm







800

800

800

Ventilation Quantity

m³/h

8500

13500

16500

16500

22000

25000

Dimension

mm

21120 × 2600 × 5500

28330 × 4100 × 7950

29586 × 4500 × 8000

29586 × 4500 × 8000

34684 × 4970 × 8800

34960 × 5850 × 8800

Total Power

kw

75

126.4

131.9

157.95

222.55

233.55



Rontech Imp & Exp Co., Ltd is a subsidiary company of Zhejiang Jinggong Science & Technology Co., Ltd. Our company is a specialized enterprise providing steel plate shot blasting machines in China. In addition to this shot blasting equipment, we also supply cold roll forming machinery, high frequency welded pipe mill, sandwich panel line, steel coil slitting line, cut to length line, metal working machinery, metal coil sheet, etc. Rontech supplies reliable and durable production to our customers. We have a professional technical team, some of who have more than 15 years’ working experience and predominant R & D ability. Our steel plate shot blasting machines have been exported to Russian, Brazil, India, South Africa, Germany, USA, Mexico, Saudi Arabia, etc. We will provide high quality shot blasting equipment and perfect service and constantly create a new situation in the field of machinery.
