HKV151 type fancy twister

Introduction
HKV151 type is applicable to produce overfeed-type and control-type fancy yarn with cotton, wool, finished product is mainly used for weaving. Controlled by PLC, the machine features simple operation and convenient changing of fancies. The center thread and molding are formed through controlling rollers, fast knoting equipment, lower false spindle, take-up roller and winding drum. Among the fancy yarn equipment, this machine is an ideal model.

1、TECHNICAL PARAMETERS

TYPE

HKV151 B-I

HKV151 B

Sindle no.

112spindle

112spindle

spindle pitch

210㎜

210㎜

type

double side and single layer

Applicable weaving titer(Nm)

3~40(Nm)

3~40(Nm)

power

14.25（kw）

15.25（kw）

Twisting

300~1600（T/M）

300~2400（T/M）

Spindle speed

5000~12000(r/min)，

8000~12000(r/min)，

roller speed

5~27(m/min)

5~27(m/min)

twist direction

S Z

S Z

speed of up false twister



6000~30000(r/min)

speed of lower false twister

4600~23000(r/min)

4600~23000(r/min)

bobbin size

φ81.5X176㎜

φ82.5X176㎜

take-up bobbin size

φ200X152㎜

φ200X152㎜

take-up mode

groove drum

machine dimension

14300X1360X2150

14830X1360X2300

2、PRODUCT FEATURES
Open type of spindle, the operation is simple, the volume of feed.
Each roller, spindle, false twisting, coiling separate variable frequency speed control, PLC program control, convenient operation, accurate process.
Unique comb section device, with independent patent property rights, production of bamboo products yields more than double, multiplied improve production efficiency.
Three layers of the yarn, to adapt to the more raw material feeding.

3、User selectable components
Four layers of the yarn: adapt to more raw material feeding.

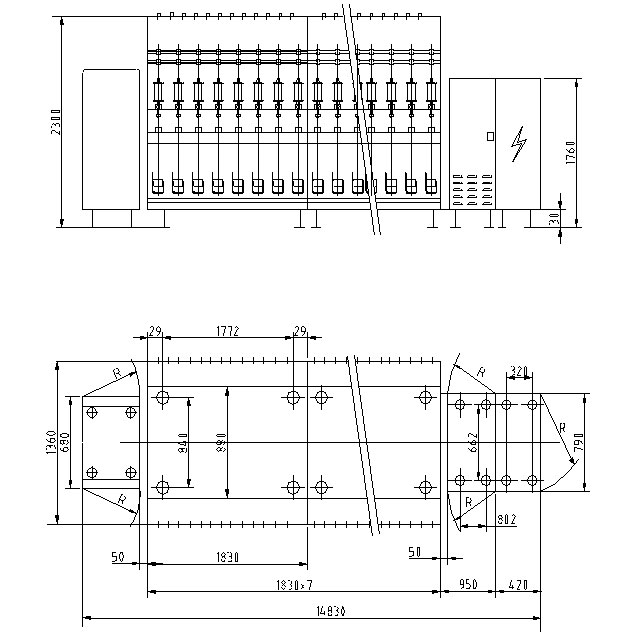

4、DIAMENSION DRAWING
