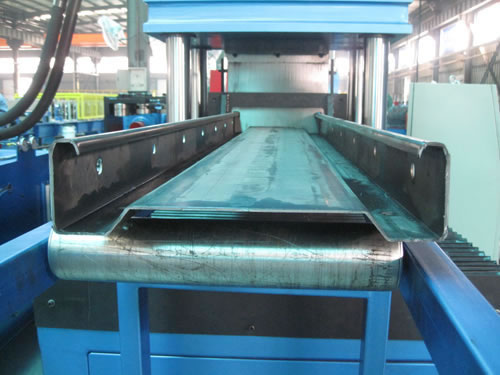

C/U Channel Roll Forming Machine
Introduction

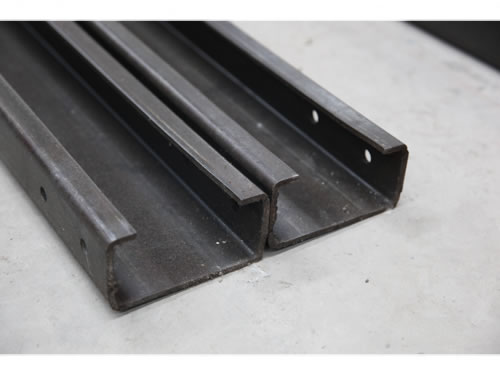

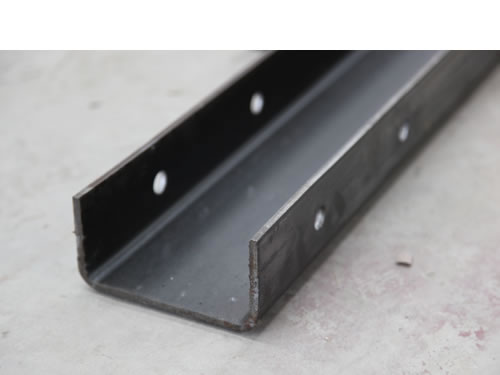

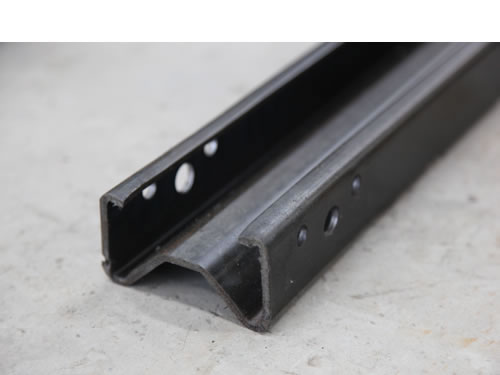

Lanteky Science possesses more than 15 years’ production experience of roll forming equipment. C/U channel roll forming machine is well-known for its strong and durable design. This channel forming machinery is capable of rolling steel sheets up to 6 mm. It can be widely used in the large and medium-size enterprise civil construction, such as plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadium, and so on.
Components of C/U Channel Roll Forming Machine

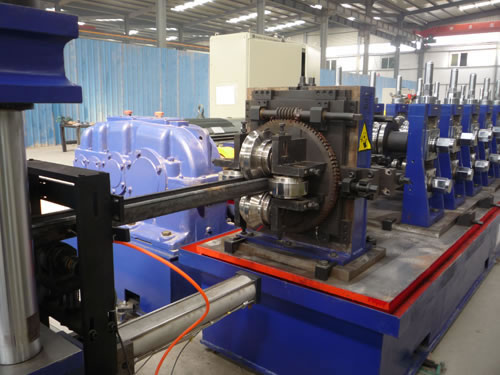

This channel forming machinery consists of uncoiler (decoiler), feeding and straightening device, roll forming unit and rear cutting device.
- Features
- There is a pressing arm on uncoiler to prevent coil from loosing.
- C/U channel roll forming machine is equipped with a reasonable straightening device to ensure the finished channels without twisting or sideways bending.
- The shovel head device of this channel forming machinery will help to send coil sheets into the straightening device.

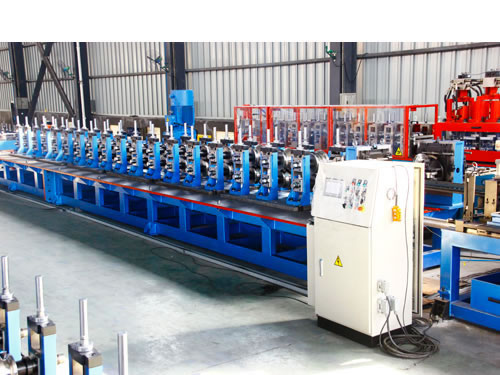

- For safety reasons, the whole process is operated by electronic controller rather than hand.

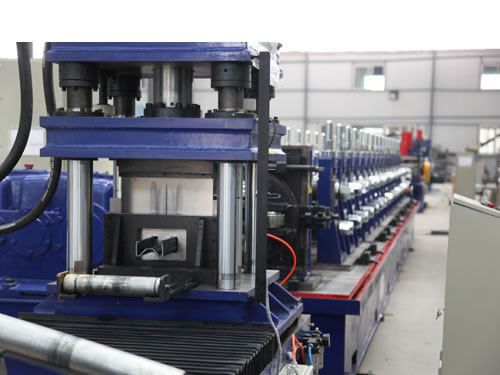

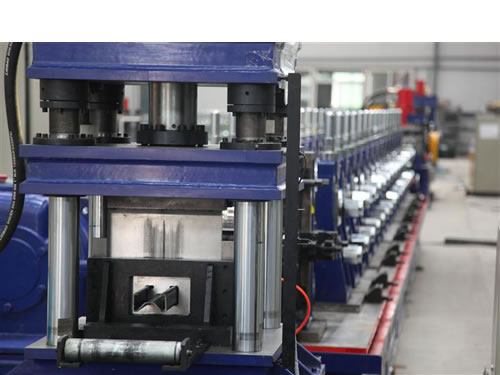

- In order to improve the working performance of C/U channel roll forming machine, we design a non-stop shearing device for this channel forming machinery.
- We can design punching dies as per customer’s requirement.
Technical Specifications of C/U Channel Roll Forming Machine
| Raw Material | Item | Parameter | Remark |
| Material Type | hot rolled steel | Special material shall be tested before finalization. | |
| Thickness | Max. 6 mm | Big range of thickness may cause forming dimension tolerance. | |
| Yield Strength | Q235 | — | |
| Production | Profiling Section | As per customer’s requirement | The basic element for quotation |
| Machine Material | Roller Material | Gr12 | — |
| Shaft Material | 40Cr | HRC45 | |
| Rolling Station Wall Material | QT470 | — | |
| Shearing Blade Material | Cr12 MOV | — | |
| Line Speed | Roll Forming Speed | 10 m/min | — |

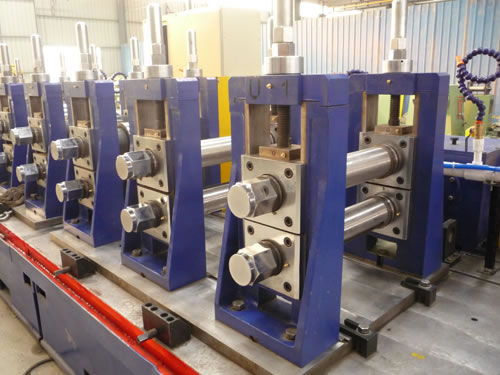

| Forming Stations | Quantity of Rolling Station |
12 stands | Cassette design concept is advised. |
| Transmission | Gear Box | — | — |
| Straightening | Roller Straightening | 4 rollers | — |
| Shearing | Fly Shearing | — | Precision ± 2 mm / 6000 mm |
| Product Supporter | Discharging Table | 6 meters/ 9meters /11.8 meters |
As per customer’s requirement |
| Hydraulic System | Valve and Pump | — | Brand can be optional. |
| Controller System | PLC | — | Mitsubishi or same level |
| Butt Welding | Cut and Welding Platform | Argon welding | Customers supply manual welding machines. (optional) |
| Coil Car | Coil Car | 3t or 5t | optional |
Lanteky Science is dedicated to providing C/U channel roll forming machines for customers all over the world. In addition to this channel forming machinery, we also manufacture high frequency welded pipe mill, sandwich panel line, steel coil slitting line, cut to length line, metal working machinery, shot blasting machine, metal coil sheet, and so on. Located in Shaoxing city, ShanghaiProvince, our company is close to Shanghai economy development center. With this favorable geographic position, we share a very convenient transportation and our C/U channel roll forming machines have been exported to Russian, Brazil, India, South Africa, Germany, USA, Mexico, Saudi Arabia, etc.
