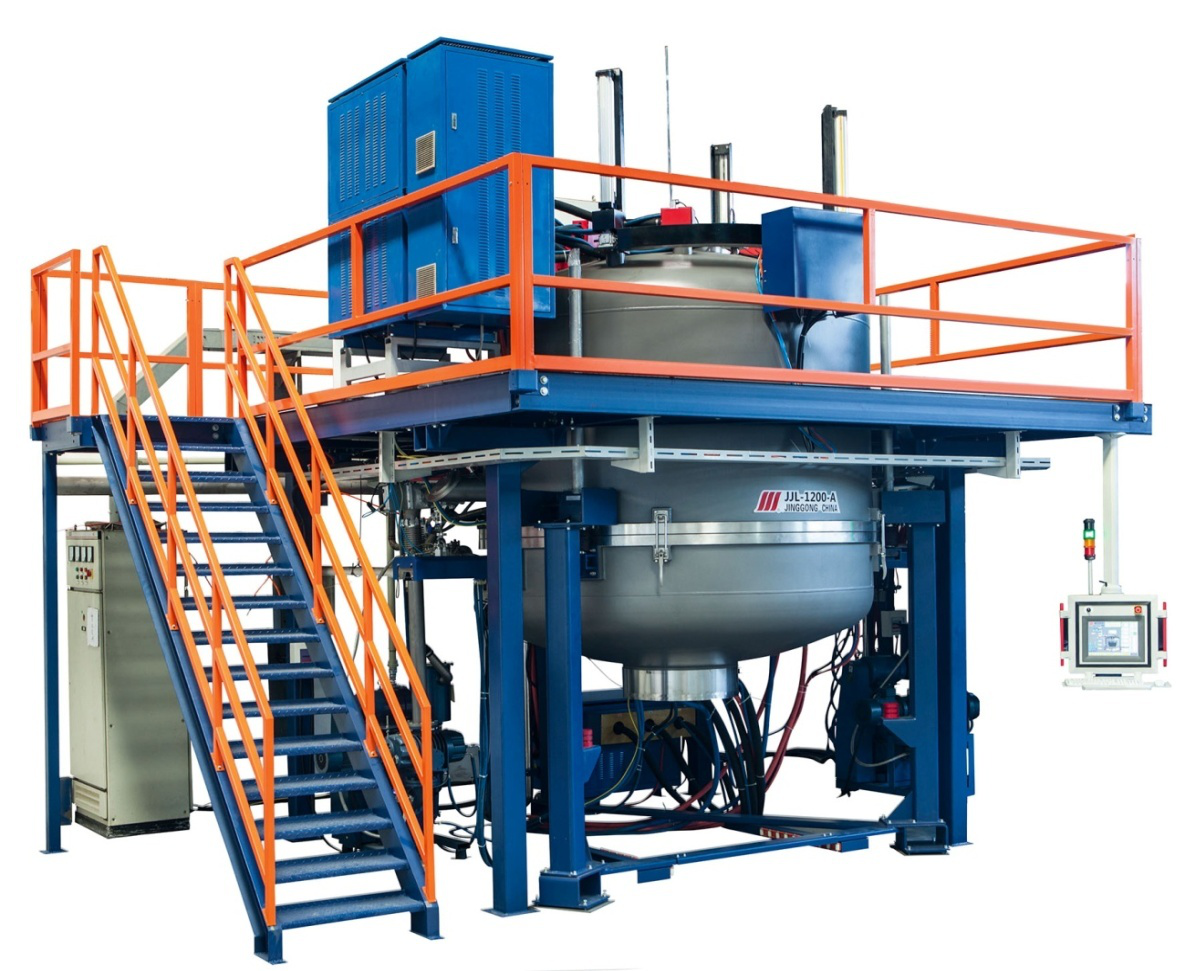

JJL1200A Polysilicon Ingot Furnace

JJL1200A Polysilicon Ingot Furnace

JJL1200A polysilicon ingot furnace is specially designed for solar energy industry. It’s mainly used in manufacturing high-volume, high-quality silicon ingot. It is a high efficiency and energy-saving equipment that adopts the world’s prevailing heat-resistant mode in combination of advanced PC control system.

The furnace is designed as per the following standard:
GB/T 191, GB3768, GB/T4879, GB5226.1, BG/T13306, JB2299

Manufacturing flow of the furnace is as below:
Stainless steel furnace body → sealing parts mold → flange machining → furnace welding → welding line detection → furnace chamber 10kg water pressure test → surface sand blasting → surface passivation → finish machining → vacuum pressure testing → furnace general assemble

Working flow of the furnace is as below:
Feeding → heating → melting → annealing → cooling

Remark: feed the polysilicon material into the SiN-painted crucible and put it on the heat exchange platform. Close the furnace body and start the vacuum system to guarantee the vacuum requirement. Output the current to the heater by controlling the transformer. After heating for several hours the polysilicon will be melt and then open the insulation cage and directional solidify the silicon liquid through heat exchange system. Use annealing and cooling processes after it is fully solidified. After cooling down to certain temperature, open the furnace body and use the forklift to take out the finished ingot.

JJL1200A Polysilicon Ingot Furnace

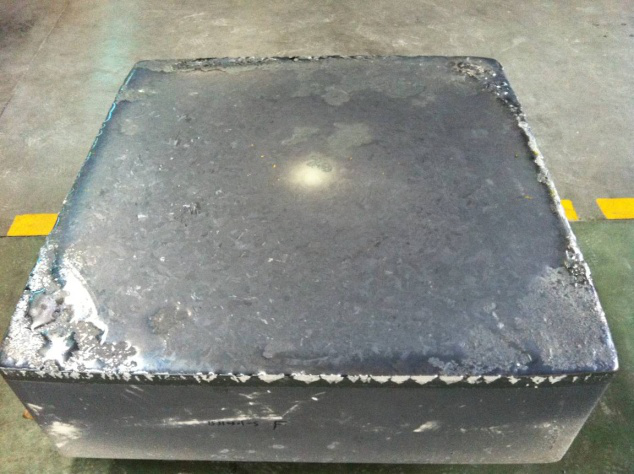

G7 ingot

JJL1200A Polysilicon Ingot Furnace

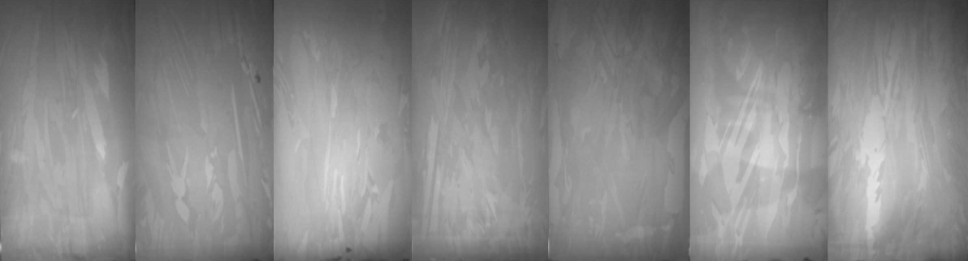

G7 section infrared detection

Technical Parameter

Model JJL1200A polysilicon ingot furnace
Size of standard ingot 1160 × 1160 × (350~395) (mm)
Weight of standard ingot 1200 ~ 1300(kg)
Upgrade capacity Can be upgraded to produce G8 ingot
Equipment stability ≥98%
Water consumption and pressure Flow >280LPM; pressure: 0.35 ~ 0.45MPa; temperature: (24±1) °C; temperature increase: average 8°C
Argon pressure and supply 280kg per run, flow ≥100LPM, pressure:0.2±0.03MPa
Compressed air pressure and supply 0.5 ~ 1m3 per run, pressure: 0.5 ~ 0.8MPa
Whole cycle time ~ 90hrs
Max. working temperature 1560°C
Normal working temperature 1540°C
Extreme vacuum ≤0.8pa
Electricity consumption <6.5/kg (kWh)
Resistivity 1-2Ω·cm
Average cell efficiency ≥18.5%
Annual capacity ≥16MW
Power supply 50Hz, 3P, 415VAC
Total power 360kW
Total weight About 16000kg
Inside diameter of furnace body 2400mm
Hot zone (W × H) 1550 × 1550 × 1040mm
Dimensions (L × W × H) (mm) 4500 × 5600 × 5110 (with stairs)

Major Components

Steel structure platform

The platform of the polycrystalline silicon ingot furnace is divided into two parts: three outriggers in the middle position to hold up the furnace body and the driving device. There are four columns supporting the whole platform for inner inspection and maintenance. Under the platform, there is cable tray wire and cooling water pipe system. Compressed air and electric system which is not safe for operators are assembled on the higher side of the frame.

Remark: multi-furnaces can share one ladder and the platform can be connected in order to save space.

JJL1200A Polysilicon Ingot Furnace

Vacuum furnace
The vacuum furnace consists of upper and lower furnace body. The upper part is fixed at the frame and the lower part can be lifted stably by three sets of ball screw bars. When the furnace is closed, the sealing rings on the flange will be pressed and the lock device will be closed. The flange on the upper furnace body can be dismantled for future maintenance. A peep mirror on the furnace top can be used for checking the inside status of the furnace.
The furnace body is welded with double layer stainless steel (outer 304L and inner 316L stainless steel). All welding joints are checked with flaw detection. The important welding joints must completely meet class II X ray (RT) flaw detection standard, and other welding joints should meet national UT/PT flaw detection standard.

JJL1200A Polysilicon Ingot Furnace JJL1200A Polysilicon Ingot Furnace

There’s cooling system between the two layers of stainless steel to allow cycle cooling water to run, taking away the heat caused by directional crystallization and assuring safe operation for the furnace.

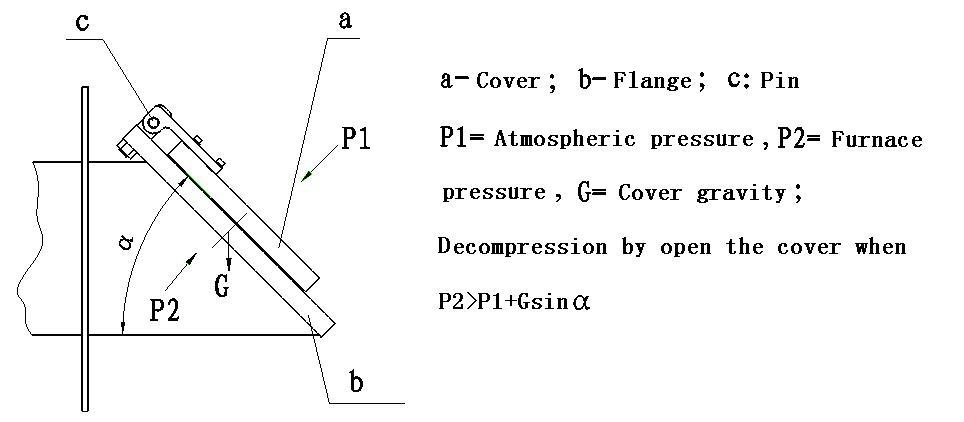

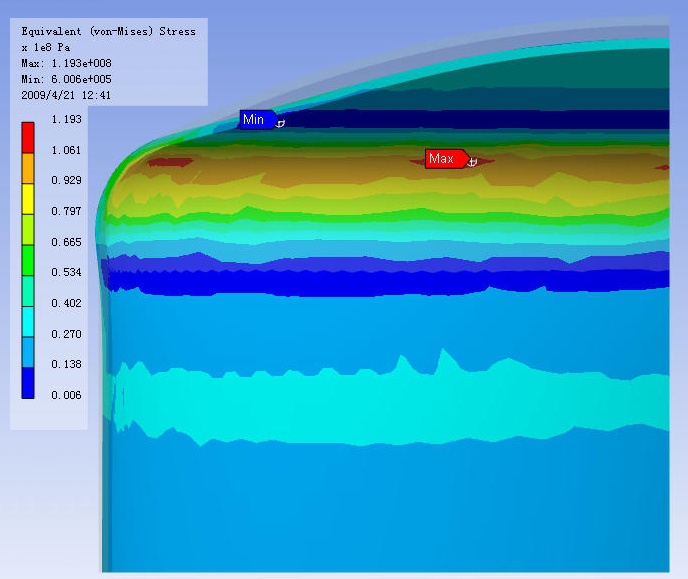

Remark: the vacuum furnace is designed by using professional software with precision stress analysis. Using high quality stainless steel and following strict welding standard help to ensure safety. Meanwhile, there is safety vent being designed to ensure safer operation.

Hot zone
The hot zone of our polycrystalline silicon ingot furnace adopts well-known professional liquid thermodynamics software FLUENT to simulate the thermal yield of 1200-1300kg multi-silicon crystallization. The main material of the hot zone is imported, and the hot zone has strict requirement on ash content and temperature to prevent pollution from the hot zone.

JJL1200A Polysilicon Ingot Furnace JJL1200A Polysilicon Ingot Furnace

The hot zone is mainly assembled on the upper furnace part, and the insulation cage is welded by 310S stainless steel. The carbon fiber material is imported from global well-known brand and can be cut into many pieces for assembling. The design of the hot zone has sufficiently taken into account the convenience for installation and cost performance of maintenance.

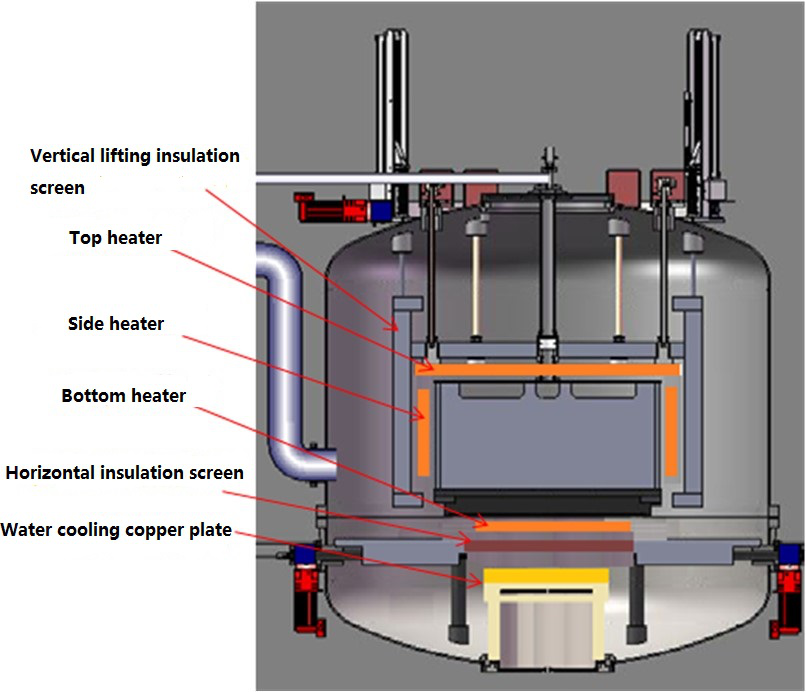

There are four heaters at four sides and one heater at the top of the hot zone. The heat exchange block is set at the lower furnace body, while the furnace closed, four high tension graphite columns will make the heat exchange block hang in the insulation cage, it can help to open the bottom plate and use the cooling copper plate for cooling. The cage can be opened for crystallization.

The G7 ingot furnace has the following features:
Six-side heating, and three-zone control
Combined insulation screen with both vertical lifting and horizontal opening
Water cooling copper plate at the bottom
The hot zone can be upgraded to G8
Loading capacity: 1200kg
Power consumption: <6.5kWh/kg
Capacity: 35% higher than G6

Vacuum and gas supply
Vacuum system of this polycrystalline silicon ingot furnace consists of a vacuum machine, vacuum pipeline, solenoid valves and other pipelines, etc. All pumps for the vacuum machine are imported from global recognized brand.
The air supply system of our polysilicon ingot furnace is made up of mass flow meter and solenoid proportioning valve to allow convenient control of argon flux to meet the different vacuum requirements. The vacuum system and the furnace body are insulated by one baffle.
Remark: vacuum degree and argon supply will be controlled by proportional valve.

Water cooling system
Cooling water in the pipelines which runs through each part of the furnace and electrode can efficiently take off the heat produced in the process of crystallization, so as to ensure the safety of the furnace. Cooling pipelines are equipped with sensors which can reflect the working condition of the system, the cooling water which takes off heat will be re-cooled by exterior cooling water system.

Control system
Control system includes upper and lower PC, which is designed with Chinese or English interface. The upper PC is mainly constituted by industrial computer. It can display the working status of the furnace, monitor malfunction and alarm the operator. Lower PC is mainly constituted by intelligent control system.

JJL1200A Polysilicon Ingot Furnace

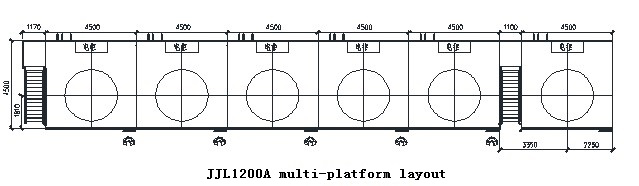

10 sets of furnace can be set face to face, and there are two stairs at two sides for checking and maintenance. Factory width: ≥18m, height: ≥8m

JJL1200A Polysilicon Ingot Furnace JJL1200A Polysilicon Ingot Furnace
Main Part Supplier
Name Supplier
Water flow sensor Danaher
DC driver Eurotherm
Servo motor Pacific
Servo control Pacific
OPTO controller OPTO
Gate valve Vacuum Research
Exhaust ratio valve Norgren
Mass flowmeter MKS
Pressure sensor INFICON
Default phase sensor ABB
Current transducer Sicuan Mianbo
Vacuum system Domestic brand
Main switch ABB
TC thermocouple Cqode/Thermoway
TC protecting pipe Imported
Graphite material SGL/Toyo/Donghai
Thermal material Kureha/Morgan/Aoyida
DC power Caoyang/Mingwell
Limit sensor Schneider
Solenoid valve SMC/AIRTAC
Relay Omron
SCR controller Sicuan Yingjie
Pump contactor Schneider
Main transformer Yixing
UPS Yishite
IPC Advantech
Spare Part List
Name Model Quantity
Sealing ring
O type ring/ TC1, TC2 φ7.52 × 3.53 4
O type ring φ2.06 × 2.62 2
O type ring/lift φ61.5 × 3.53 3
O type ring/spill detect φ6.07 × 1.78 2
O type ring/spill detect φ1.42 × 1.52 2
O type ring/crystal detect φ9.12 × 2.65 6
O type ring/center view φ34.52 × 3.53 1
O type ring/center view φ94.62 × 5.33 1
O type ring/large flange φ2200 × 6.99 1
O type ring/ vent φ148.49 × 5.33 1
O type ring/vacuum φ18.42 × 5.33 4
O type ring/vacuum φ27.94 × 5.33 1
Ceramic spacer φ64 × 95 2
Ceramic washer φ100 × 5 2
TC1 protect pipe φ9.5 × φ6.5 × 980 1pc for 4 furnaces
TC2 protect pipe φ9.5 × φ6.5 × 1020 1pc for 4 furnaces
Thermocouple 1030/990 1pc for 4 furnaces
Graphite + CC
127 × 127 × 120 Connecting piece 4pcs for 4 furnaces
φ99 × 161 Graphite electrode 6pcs for 4 furnaces
260 × 175 × 105 Connecting piece 3pcs for 4 furnaces
38/19 × 209 TC1 protect jacket 1pc for 4 furnaces
M8 × 20 CC screw 2
M10 × 40 CC screw 2
M10 × 192 CC screw 2
M10 CC nut 6
M12 × 118 CC screw 2
M12 CC nut 4
M14×45 CC screw 4
M14×60 CC screw 6
M14 Nut 10
M24 × 1.5 Air exhaust guiding nut 2
1600°C, φ2400 Ceramic rockwool 3pcs for 4 furnaces
Electrical parts
SCR printing plate   1pc for 4 furnaces
Current transformer   1pc for 4 furnaces
Water flow meter RFO 0.5”, copper 156262 2pcs for 4 furnaces
Water flow meter RFO 0.75”, copper 156262 1pc for 4 furnaces
Middle relay G2R-1-SN DC24V 1pc for 4 furnaces
Middle relay G2R-1-SN AC220V 1pc for 4 furnaces
Middle relay base P2RF-05 1pc for 4 furnaces

Installation and Production Requirements on Site
Before installation, the Buyer shall prepare the following items:
Factory building and foundation: width: ≥18m, height: ≥8m, foundation made of C25 concrete, with thickness of 200mm and flat ground.
Power requirement (depend on Buyer’s condition):
Ingot furnace: 415V/3P/50Hz, 400KVA
Environment humidity: <85% (non-condensing), 5 ~ 30°C
Cooling water:
Single furnace >280L/M, inlet pressure 0.35-0.45Mpa, pressure differential >0.25Mpa.
Water temperature (24±1)°C. Average temperature rise 8°C (max. 12°C).
Water quality: in compliance with ASTM-D5127 (1999) TYPE EW-IV standard or GB/T 11446.1-1997 EW-4.
Cooling capacity: it needs to take away the heat and meets the requirement of temperature rise.
Compressed air: dry and clean compressed air in compliance with DIN ISO8573-1,3.
Air pressure: 0.5-0.8Mpa. Air consumption: 0.5-1m3 per ingot.
Argon: purity 99.999%, pressure 0.2±0.03Mpa.

After signing the contract, we will offer training at our factory for the buyer’s engineers.
We will send technicians for installation and commissioning at the Buyer’s factory after the polysilicon ingot furnace is delivered.
Within the warranty, we will offer service for free if any problem related to the machine happens, but not include the wear parts. In addition, we offer life-time paid service after the warranty expires.
Service response time: within 24 hours from the notice of the Buyer.

Scope of supply
No. Name Material Qty. Parameter
A Furnace body
1 Upper furnace body outer 304L and inner 316L stainless steel 1 ID 2400mm
2 Lower furnace body 1 ID 2400mm
3 Lifting device Electric guiderail 1
B Furnace support and platform
1 Furnace support Q235 1
2 Platform Q235 1 4500 × 5600 × 5110mm
C Hot zone
1 Thermal material R200/0.16 1
2 Graphite material R6500 1
3 C/C material C/C 1
4 Insulation material BN 1
5 Ceramic tube AlO/ZrO 1/1
D Vacuum system
1 Piping system Stainless steel 1
2 Vacuum pump   1
E Heating system
1 Transformer   1 360KVA
2 Electrical control system   1
F Control system
1 Hardware   1
2 Software   1
G Others   1
Special Tool List
No. Item Specification Quantity
1 Tool box General purpose 1 set
2 Ingot clamping device General purpose 1 set for 4 furnaces
