Cut to Length Line

Cut to Length Line

Cut to length line is also named as transversal shearing line, cut-to-length machine or cut-to-length production line. It is mainly used to cut tinplate coil, galvanized coil sheet, siliconized steel sheet, cold rolled coil sheet, stainless coil sheet, aluminum coil sheet as per the requested product length and stack them for packing. Cut to length line or transversal shearing line is the pre-process of coil steel sheets used in the following industries like transformer, household electrical appliances, automobile, building material, packing, etc. Our company can manufacture cut-to-length machines according to clients’ demands.

Working Process

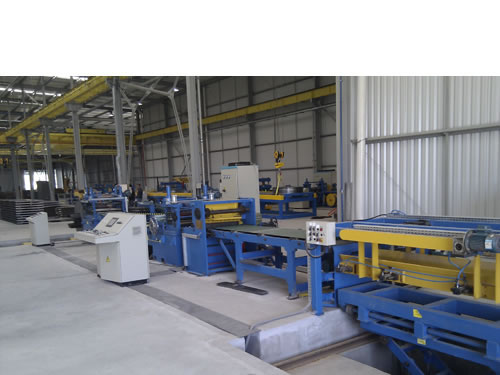

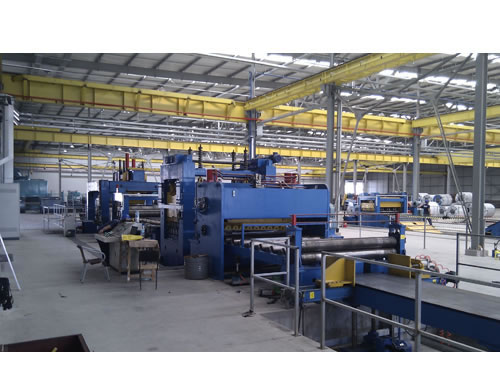

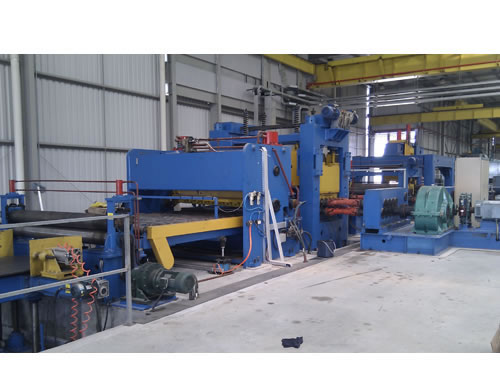

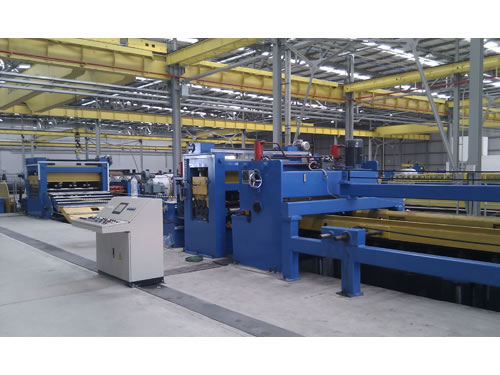

Cut to length line (transversal shearing line) can uncoil metal sheet strip coil, straighten metal sheet strip and feed metal sheet strip forth to shearing machine. The shearing machine cuts metal sheet strips transversely in order to get metal sheet plates with required length.

Classification of Transversal Shearing Line

Support Equipment

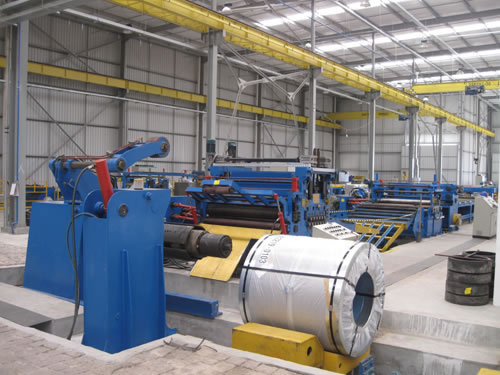

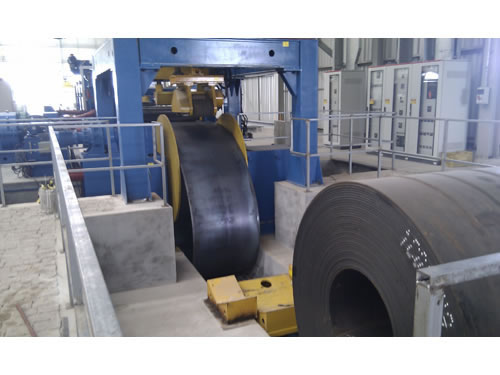

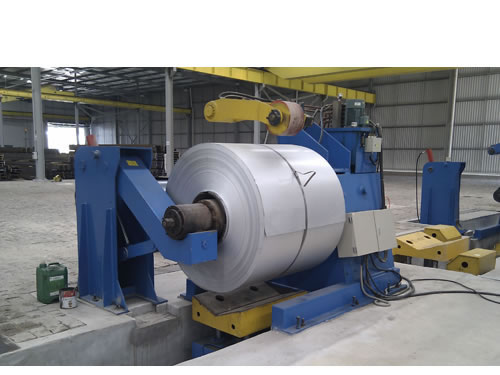

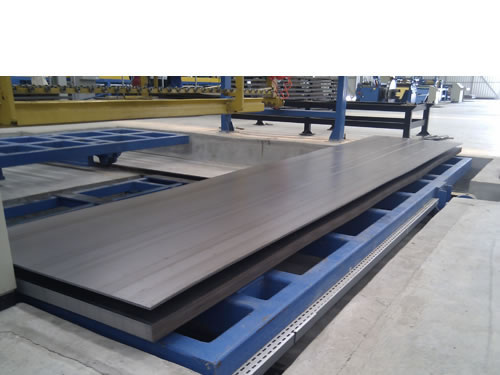

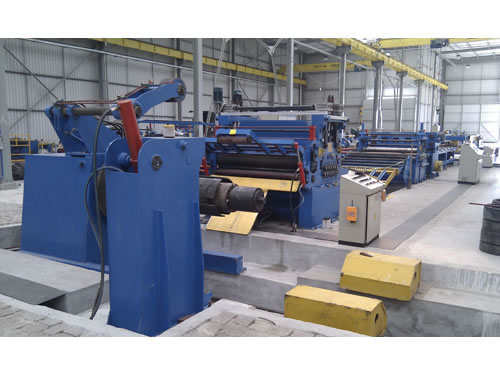

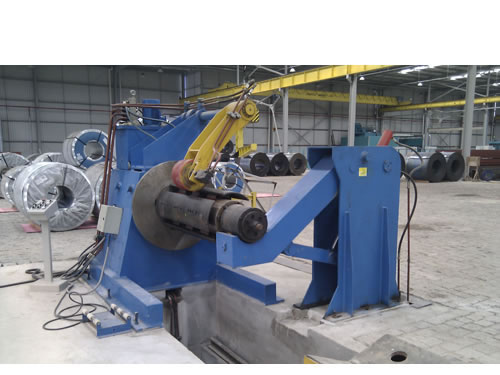

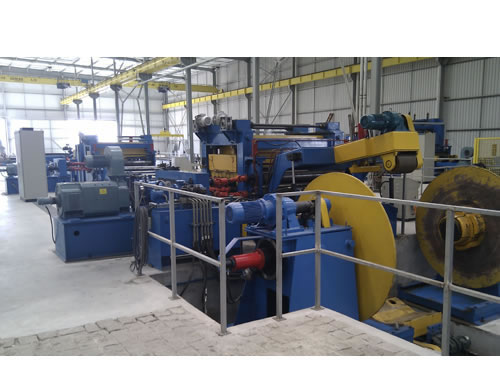

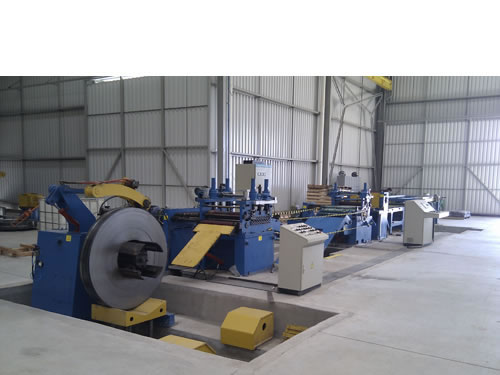

The transversal shearing line or cut to length line consists of coil car, hydraulic single arm decoiler, coil guiding device, rectifying deviation device, fourfold type 19 rollers leveling device, looping device, straightening device, high speed cutting device, belt conveyor, pneumatic discharge device, automatic stacker, hydraulic system and electrical system.

Technical Parameters of Cut to Length Line

1. Material Specifications
Suitable Material hot rolled steel plate, cold rolled low carbon steel plate, galvanized steel plate, stainless steel plate, etc.
Material Strength σs ≤ 245 MPa, σb ≤ 450 MPa
Thickness 0.3 mm to 30 mm
Width 800 mm to 2500 mm
Inner Diameter ф508 mm or ф610 mm
Outside Diameter ≤ Ф1600 mm
Weight ≤ 20 T
2. Product Specifications
Cutting Length 300 mm to 12000 mm
Cutting Tolerance ≤ ± 0.5 mm/m
Catercorner Tolerance ≤ ± 1.0 mm/m
Leveling Accuracy ≤ ± 1 mm/m2

Zhejiang Jinggong Science & Technology Co., Ltd is a specialized manufacturer of cut to length lines in China. In addition to this transversal shearing line or cut-to-length machine, we also supply cold roll forming machinery, sandwich panel line, steel coil slitting line, metal working machinery, shot blasting machine, metal coil sheet, etc. We have a professional technical team of first-class rich experience and well-trained technicians. The cut to length line developed and designed by us meets the international standard. Our transversal shearing lines have been used and widely praised by clients from more than 30 countries and areas, such as Russian, Brazil, India, South Africa, Germany, USA, Mexico, Saudi Arabia, and so forth.
