Guardrail Forming Machine

Guardrail Forming Machine

Description

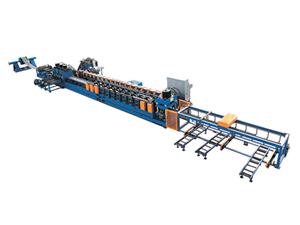

Our automatic guardrail roll forming machine integrates cold bending, cold stamping, auto stacking, and auto control technologies. The hot rolled steel strip is leveled and punched by the machine, and then roll formed and cut into highway guardrail.

Main Components

Lanteky HL-310 guardrail forming machinery is made up of a decoiler, leveling system, trimming rewinding system, cutting equipment, punching system, roll forming system, shearing device, automatic stacker, electric control system, hydraulic system, and automatic control system.
Advantages of Guardrail Roll Forming Machine

1. We can not only provide guardrail forming equipment, but also offer many other kinds of construction materials machinery such as sandwich panel machine, purlin forming machine, roll forming machine, etc.

2. Our guardrail forming machinery features high production efficiency, high level of automation and low labor intensity.

3. Our products have earned ISO9000 and CE certificates.

Technical Specifications of Guardrail Roll Forming Machine

No. Item Unit Parameter Remark
1 Suitable material Type Hot rolled plate, galvanized plate
Plate strength MPa ≤350
Plate thickness mm 3 to 4
Coil inside diameter mm 500, 600
Coil weight T 10
2 Working speed m/min ≥20
3 Roller Material of Guardrail Roll Forming Machine D2 quenching treatment
4 Driving mode Gearbox drive
5 Console Mode of Guardrail Forming Machinery Touch screen+ button
6 Total power kW About 90
7 Electric control system Industrial computer PLC frequency control
8 Outline dimensions (LXWXH) m 30 × 4 × 1.7
