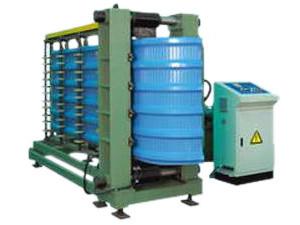

Curving Punching Forming Machine

Curving Punching Forming Machine

Description

Punching curve machine is made up of the main forming machine, conveyor, material supporter, electric control system and hydraulic system.

Application

Our punching curve machine is kind of auxiliary equipment, which is designed for material curving and punching.

Advantages

1. Our HVW curving punching forming machine have received the ISO9000 and CE certification, and are exported to over 60 countries, such as the USA, Germany, Canada, Russia, Mexico, Australia, and more.

2. The punching curve machine has a small bending radius and simple operation, making it increasingly used by our worldwide customers.

3. In addition to providing curving punching forming equipment, we also offer other auxiliary equipment for forming machine, like slitter, uncoiler, stacker, seamer, etc.

Technical Specifications for Curving Punching Forming Machine

No. Item Unit Parameter Remark
1 Suitable material Type Color plate, aluminum plate , galvanized plate According to customers' requirement
Thickness mm ≤0.8
Yield strength Mpa ≤500 Depending on customers' material characteristic
Width mm ≤1200 According to different profile shape
Curving punching radius mm 500 (min.)
2 Roller Material of Punching Curve Machine Hard chromium plated 45 steel
3 Driving mode Chain drive
4 Console mode Touch screen+ button
5 Total power kW About 7
6 Electric control system Industrial computer PLC frequency control
7 Outline dimensions (LXWXH) m 5 × 2 × 1.7
