Shot Blasting Machine

Shot Blasting Machine

Description

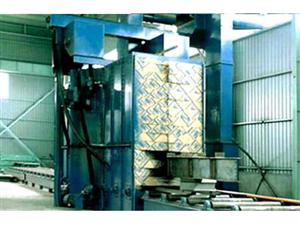

Our shot blasting equipment is the pretreatment equipment for cleaning welded structures, H steel and shaped steel. It is mainly used for shot blasting the surface of raw steel material, it can remove rusty scale, welding slag and roll scale, thus obtaining uniform metal luster.

Advantages of Shot Blasting Machine

1. The shot blasting equipment can not only improve the finishing quality and corrosion resistance of the steel plate, but also reduce labor intensity and environment pollution.

2. In addition to shot blasting machine, we also offer other steel structure machines, like box column welding machine, digital folder, slitting machine, cut to length machine, etc.

3. We have received the ISO9000 and CE certificates, and are exported to over 60 countries, such as the USA, Germany, Canada, Russia, Mexico, Australia, and more.

Technical Specifications for Shot Blasting Equipment

No. Item Unit Parameter Remark
1 Suitable material Applicable material Steel structural parts, profiled bar
Material size(LXWXH) mm 15000 × 1000 × 1600
2 8HPT300 impeller heads Power kW 18.5 × 8
Shot blasting capacity Kg/min 220
3 Work piece delivery Working speed m/min 0.8 to 4
Power kW 4 × 2
4 Conveying capacity of shot circulatory system t/h 100
5 Dedusting system of shot blasting equipment Filtering area m2 250
Dedusting air flow m3/h 20000
6 Shot material of shot blasting machine Cast steel shot mm 1.6 to 2
Steel wire head mm 1.2 to 1.5
