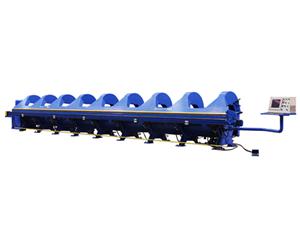

Digital Folding Machine

Digital Folding Machine

Description

Our steel sheet folding machine is under CNC control, and can automatically perform various operations such as plate locating, clamping, folding, and slitting. This folding machine is a high-tech product that integrates advanced mechanical, electrical, and hydraulic technologies.

Application

Our steel sheet folding machine is suitable for use in steel constructions, and also can be used for plate metal folding operations in other industries.

Main Components

Jinggong digital folding machinery mainly consists of stop gauge, upper and lower clamps, and panel turnover mechanism etc.

Advantages

1. With our vast experience and highly trained staff, we now provide a wide range of steel structure machines, such as shot blasting machine, bending machine, slitting machine, and cut to length machine etc.

2. Due to their high quality and reliability, our digital folding machinery has been ISO 9000 and CE certified, and is exported to the USA, Germany, Canada, Russia, Mexico, Australia, among others.

Technical Specifications for Steel Sheet Folding Machine

No. Item Unit Parameter Remark
JZW650 JZW800 JZW1000
1 Max folding length mm 6500 8000 10000
2 Throat depth mm 800
3 Max. folding thickness Steel plate mm 1.5
Soft aluminum plate mm 2.0
Stainless steel mm 1.0
4 Max. slitting thickness of Steel Sheet Folding Machine Steel plate mm 1.5
Soft aluminum plate mm 2.0
Stainless steel mm 1.0
5 Max. folding angle of digital folding machinery degree 125
6 Slitting speed m/min 40
7 Total power kW 12
8 Total weight kg 4500 5400 6500
