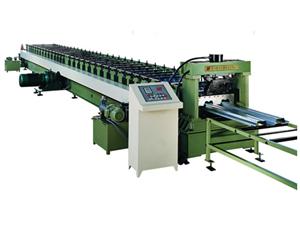

Steel Deck Forming Machine

Steel Deck Forming Machine

Description

The steel deck reduces the floor load (it is lighter than the constructed framework), speeds up the construction process, and increases investment returns. This steel deck roll forming machine has received 4 patents of utility model.

Application

Our steel deck forming equipment combines mechanical, electrical and hydraulic equipment into an organic whole. The steel deck it produces is widely used in high steel structure buildings, as opposed to constructing the framework.

Main Components

Jinggong steel deck roll forming machine is comprised of a feeder, sheet guiding equipment, Iubrication system, roll forming machine system, cutting equipment, product supporter, hydraulic system and automatic control system, etc.

Advantages of Steel Deck Forming Equipment

1. Our steel deck forming machine is available in different specs, models and configurations to suit your different needs.

2. Additionally, we offer other construction material machinery such as sandwich panel machine, purlin forming machine, and are exported to over 60 countries, including America, Australia, Bulgaria, Argentina, Egypt, Syria, and India.

Technical Specifications of Steel Deck Roll Forming Machine

No. Item Unit Parameter Remark
1 Suitable material of steel deck forming equipment Type Galvanized sheet
Thickness mm 0.8 to 1.2 or 1.0 to 1.5

Depending on customers' requirement

Yield strength Mpa ≦400 As per customers' material characteristic
Width Mm ≦1500 According to different profile shape
Coil weight T 5, 8 or 10 Optional
2 Working speed m/min ≦15
3 Roller material of steel deck roll forming machine 45steel or 38crmoal According to customers' requirement
4 Roller driving mode External chain drive
5 Electric control system Industrial computer PCL frequency control
6 Console mode Touch screen + button
7 Total power kW 24 As per technical requirement
8 Outline dimensions(LXWXH) m 24 × 1.6 × 1.8
