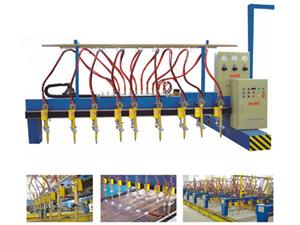

CNC Flame Cutting Machine

CNC Flame Cutting Machine

Description

Besides the trip cutting function, our CNC flame cutting machine add the economical and practical CNC functions, which not only can do strip cutting in batch, but also can cut different shapes.

Advantages of CNC Flame Cutting Machine

1. Main beam of CNC flame cutters is whole press brake, welded and stress-relieved, which features stable structure and good rigidity, and no deformation after long time using.

2. Servo motor, reducer decompression valve, gas pipe and solenoid valve, cutting torches are all international famous brand, ensuring the quality stable and reliable.

3. As a professional CNC flame cutter manufacturer in China, we can design and manufacture different specification according to different requirement of the client.

Technical specifications for CNC Flame Cutting Machine

Item Parameter
Rail span 4000 to 10000 mm
Rail length 15000 mm
Effective route 12500 mm
Cutting width 80 to 3200 mm
Cutting velocity 20 to 6000 mm/min( stepless speed variation)
Longitudinal strip cutting torch 9 groups
CNC cutting torch 2 groups
