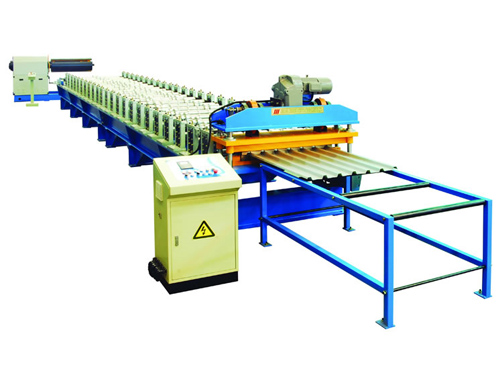

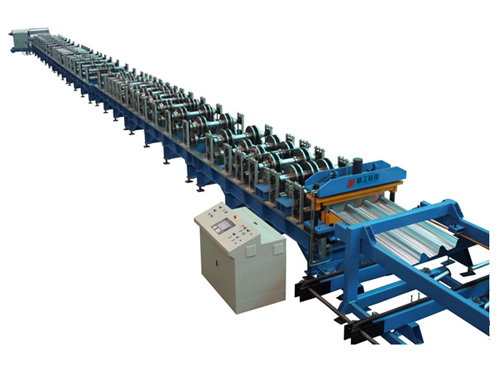

High Speed Roll Forming Machine

High Speed Roll Forming Machine

Description

HVM series high speed roll forming machine is developed on the basis of HV series forming machine, which combines mechanical, electrical and hydraulic equipment into an organic whole. Features of this roll forming equipment include the ability to perform high speed operations with great efficiency.

Main Components

Lanteky high speed roll forming equipment is made up of decoiler, sheet guiding equipment, plate lubrication system, pressing equipment, roll forming system, cutting equipment, automatic stacker, hydraulic system, automatic control system, etc.

Advantages

1. The HVM high speed roll forming machine has been awarded 2 patents of invention and 2 patens of utility model. We can design it as per customers' requirements in terms of panel shape, specifications and configuration.

2. We specialize in the production of construction material machinery such as sandwich panel machine, steel deck forming machine, guardrail forming machine, etc.

3. Our products have ea ISO9000 and CE certified, and are sought after by customers in the USA, India, Pakistan, Bangladesh, Turkey, the Philippines, Singapore, and more.

Technical Specifications of High Speed Roll Forming Machinery

No

Item

Unit

Parameter

Remark

1

Suitable Panel Materials of Roll Forming Equipment

Type

Color plate, aluminum sheet, galvanized plate

Depending on customers' requirement

Thickness

mm

0.4 to 0.8, 0.8 to 1.2 or 1.2 to 1.5

Yield strength

Mpa

≤550

As per customers' material characteristic

Width

Mm

≤1500

According to different profile shape

Coil weight

T

5, 8 or 10

Optional

2

Working speed

m/min

≤20 to 50

According to customers' desired production capacity and requirement

3

Roller material of high speed roll forming machine

45steel, 38crmoal,GCr15 or D2

4

Roller driving mode

Independent stander, built-in chain drive

5

Electric control system

Industrial computer PCL frequency control

6

Console mode

Touch screen + button

7

Total power

kW

12.7

As per technical requirement

8

Outline dimensions(LXWXH)

m

30 × 3.5 × 2
