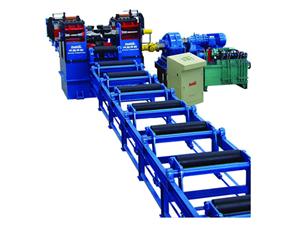

H-beam Flange Straightening Machine
Description
Our flange straightening equipment is mainly used for the angle distortion straightening of heavy H-beam. As a renowned manufacturer of H-beam flange straightening machine, we can design and manufacture different specification according to different requirement of the client.
Features of Flange Straightening Equipment
Adopting hydraulic straightening method, Our H-beam flange straightening machine has the features of strong straightening force, large straightening range, high working efficiency and good product quality.
Technical Specifications of H-beam Flange Straightening Machine
| Item | Parameter | |
| Model | JJZ60B | JJZ80B |
| Flange width | 200 to 800 mm | 200 to 1000 mm |
| Web height | ≥350 mm | ≥450 mm |
| High pressure straightening force | 1500 kn | 2800 kn |
| Straightening material thickness | Q235≤80 mm Q345≤60 mm | Q234≤1000 mm Q345≤80mm |
| Max. straightening speed of flange straightening equipment | 5.5 m/min | 6.5m/min |
| Total power | 26 kW | 27 kW |
