Self Supporting Girder Steel Decking Machine
Description
Jinggong self supporting girder steel decking machine adopts advanced mechanical, electrical, hydraulic and pneumatic technologies. Under microcomputer control, it can automatically complete the whole production process, from steel girder production, bottom plate forming, to steel form assembling and welding. The annual production capacity for single shift achieves 300,000 square meters.
Main Components

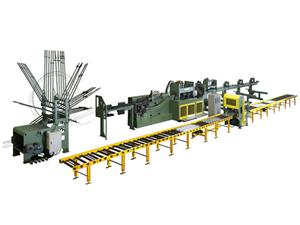

Our steel decking forming machinery is composed of steel girder production line, bottom plate forming machine, and steel form spot welder etc.
Application
Self supporting steel deck is a new-type building material. Due to its light structure and high strength, self supporting girder steel decking machine is increasingly used in steel structure buildings, bridges, and railways, among others. Concrete can be directly poured on the self supporting steel deck, which greatly reduces workload and shortens construction cycle.
Advantages of Steel Decking Forming Machinery
1. A wide range of steel structure machines is available in our company, which includes shot blasting machine, bending machine, digital folder, and drilling machine etc.
2. These have been awarded the ISO9000 and CE certificates. Thanks to their high quality and low prices, our products are exported to many countries, such as America, Australia, Bulgaria, Argentina, Egypt, Syria, India, and more.
Technical Specifications for Self Supporting Girder Steel Decking Machine
| Machine model and name | Parameter | |||
|
JGH30 steel bar truss production line |
Suitable raw material
|
First quarter main tendon |
Screw thread steel |
|
|
φ6 to φ14(mm) |
||||
|
Last quarter main tendon |
Screw thread steel |
|||
|
φ5 to φ14(mm) |
||||
|
Z type assistant bar |
Round steel |
|||
|
φ4 to φ6.5(mm) |
||||
|
Processing dimension
|
First quarter height(mm) |
70 to 270 |
||
|
Last quarter height(mm) |
15 to 30(Curve truss) |
|||
|
0 to 30(Straight truss) |
||||
|
Length (mm) |
200 to 12000 |
|||
|
Bottom width(mm) |
135 to 140(Curve truss) |
|||
|
60、80(Straight truss) |
||||
|
Feet distance(mm) |
200 |
|||
|
Feet folding length(mm) |
30 |
|||
|
Production speed(m/min) |
15 to 20 |
|||
|
Total power(kW) |
585 or 155(AC frequency power) |
|||
|
Machine dimension (length × width × height) (mm) |
40000 × 5000 × 4500 |
|||
|
Total weight(T) |
About 27 |
|||
|
HG-576 bottom plate forming machine (Self Supporting Girder Steel Decking Machine) |
Suitable raw material
|
Type | Galvanized steel | |
| Thickness(mm) | 0.4 to 1 | |||
| Forming speed(m/min) | 12 to 15 | |||
| Machine dimension (length × width × height)(mm) | 10000 × 1700 × 1000 | |||
|
JGH60 steel moulding board spot welding machine (Steel Decking Forming Machinery ) |
Suitable Work piece dimension
|
Roll formed steel plate width(mm) | 576(or)600 | |
| Steel bar truss max. height(mm) | 270 | |||
| Work piece length(mm) | 1800 to 12000 | |||
| Max. Welding speed(m/min) | 8 to 10 | |||
| Total power(kW) | 303 or 103AC frequency power) | |||
| Machine dimension(mm) | 19000 × 1700 × 2000 | |||
