Downspout Forming Machine

Downspout Forming Machine

Description

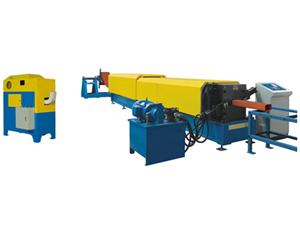

Our HS downspout roll forming machine is designed to produce close type downspout after cold forming and auto whipstitching processes. Under mechanical control, the equipment is highly automatic and the bending angle can be manually adjusted. Our company produces high quality downspout forming equipment of different types and models to suit customers' requirement.

Application

A curving machine can bend the downspout into a downspout elbow of different matching angles, therefore our downspout roll forming machine is suitable for downspout bending and necking. It is widely used in steel structure buildings, villas and more.

Main Components

Jinggong HS downspout forming equipment is mainly made up of a decoiler, sheet guiding equipment, roll forming system, cutting equipment, product supporter, hydraulic system, and control system.

Advantages of Downspout Roll Forming Machine

1. We provide a wide range of construction materials machinery, such as sandwich panel machine, roll forming machine, steel tile forming machine, guardrail forming machine, etc.

2. Our products are ISO9000 and CE certified, and it is very popular in the USA, Cambodia, Algeria, Lebanon, Malaysia, etc.

Technical Specifications for HS Downspout Forming Equipment

No Item Unit Parameter Remark
1 Suitable material Type Color coated steel sheet
Thickness mm ≤0.55 According to customer' requirement
Yield strength MPa ≤350 Depending on customers' material characteristic
Width mm ≤500 According to different profile shape
Coil weight

T 3 or 5 Optional
2 Working speed m/min 15
3 Roller Material of Downspout Roll Forming Machine Hard chromium plated 45 steel
4 Driving mode External chain drive
5 Electric control system Industrial computer PLC frequency control
6 Console mode Touch screen+ button
7 Motor power kW 10.5 As per technical requirement
8 Outline dimensions (LXWXH) m 14 × 1.2 × 1.5
