Auto Change Purline Machine

Auto Change Purline Machine

Description

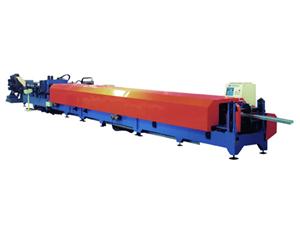

Auto change purline machine mainly consists of hydraulic decoiler, leveling system, punching equipment, cutting equipment, material supporter, roll former, hydraulic system and automatic control system.

Application

Purline forming machinery has been awarded many patents of utility model, and it is widely used in steel structure buildings.

Advantages of Auto Change Purline Machine

1. We have certified by ISO 9000 and our products have received the CE certificate.

2. In addition to purline machine, we also provide other construction materials machinery, such as roll forming machine, steel tile forming machine, and guardrail forming machine, etc.

3. C Z purline forming machinery has many automatic functions, such as auto purline change, specification adjustment, cutting to length, punching, cutting, etc.

Technical Specifications for Auto Change Purline Machine

No Item Unit Parameter Remark
1 Suitable material Type Ordinary cold, hot rolled plate, galvanized plate
Plate strength MPa ≤350
Plate thickness mm 1.6 to 3.2
Coil inside material mm 500, 600
Coil weight T 5
2 Production spec mm 100 to 320
3 Working speed m/min 25
4 Roller Material of Auto Change Purline Machine

D2, with quenching treatment

5 Driving mode External chain drive
6 Operating system Windows2000
7 Motor power

kW About 65
8 Electric control system Industrial computer PLC frequency control
9 Outline dimensions (LXWXH) m 30 × 2 × 1.7
