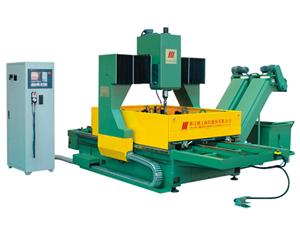

CNC Drilling Machine

CNC Drilling Machine

Description

Our steel drilling equipment consists of CNC control system, X, Y axis AC servo control and Z axis hydraulic feeding, so it realizes quick positioning and frilling.

Application

The CNC drilling machine has been awarded two patents of utility model, and is widely used for drilling of yoke plate and plate-like parts in steel constructions.

Main Components

Jinggong steel drilling equipment mainly consists of lathe bed, mobile gantry, drilling head, convertible workstation, electric control system, hydraulic system, cooling system, and chip cleaner.

Advantages

1. Jinggong is a CNC drilling machine manufacturer and supplier, can provide a wide range of steel structure machines, such as shot blasting machine, bending machine, slitting machine, and cut to length machine etc.

2. Our steel drilling equipments have earned ISO9000 and CE certificates, and are very popular in the USA, Cambodia, Algeria, Lebanon, Malaysia, and more.

Technical Specifications for CNC Drilling Machine

No. Item Unit Parameter Remark
1 Max. processing thickness of work piece mm 80
2 Max. processing size of work piece mm One cardinal point:1650 × 1000
Two cardinal point:1000 × 825
Four cardinal point:825 × 500
3 Max. drilling diameter mm 50
4 Spindle speed of steel drilling equipment r/min 130 to 400, stepless speed regulation
5 Max .travel of spindle of CNC drilling machine mm 180 (cylinder feeding)
6 No. of worktable grip cylinder 12
7 Traveling speed of X,Y axle m/min 12
8 Total power kW About 12
