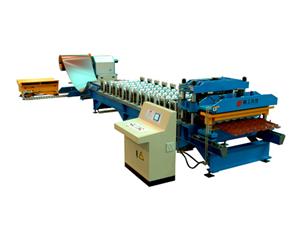

High Speed Steel Tile Forming Machine

High Speed Steel Tile Forming Machine

Description

Our HLM high speed steel tile roll forming machine is designed based on the HL series forming machine. This high speed steel tile forming equipment integrates mechanical, electrical and hydraulic technologies into one unit. This combination gives the equipment a high speed capacity with increased efficiency. Additionally, it adopts an industrial computer control system that is highly automatic.

Main Components

Jinggong high speed steel tile forming machinery mainly consists of a decoiler, sheet guiding equipment, laminating system, roll forming system, cutting equipment, automatic stacker, hydraulic system, and automatic control system.

Advantages

1. This steel tile roll forming machine has earned one patent of invention and two patents of utility model. Our company produces steel tile forming machines of different specifications, models and configurations.

2. We also provide a vast line of construction materials machinery such as sandwich panel machine, purlin forming machine, guardrail forming machine, etc.

3. Due to high quality and low prices, our high speed steel tile forming machinery is exported to over 60 countries including America, Australia, Bulgaria, Argentina, Egypt, Syria, India, etc.

Technical Specifications of Steel Tile Roll Forming Machine

No. Item Unit Parameter Remark
1 Suitable material Type Color plate, aluminum plate Depending on customers' requirement
Thickness mm ≤0.65
Yield strength Mpa ≤400 As per customers' material characteristic
Width mm ≤1250

According to different profile shape

Coil weight T 5, 8 or 10

Optional

2 Working speed m/min ≤6
3 Roller Material of Steel Tile Roll Forming Machine Hard chromium plated 45 steel
4 Roller driving mode Independent stander, built-in chain drive
5 Pitch adjustment range mm 150 to 400 Adjustable
6 Electric Control System of High Speed Steel Tile Forming Machinery Industrial computer PLC frequency control
7 Console mode Touch screen+ button
8 Total power kW 11 As per technical requirement
9 Outline dimensions (LXWXH) m 16 × 3.5 × 2
